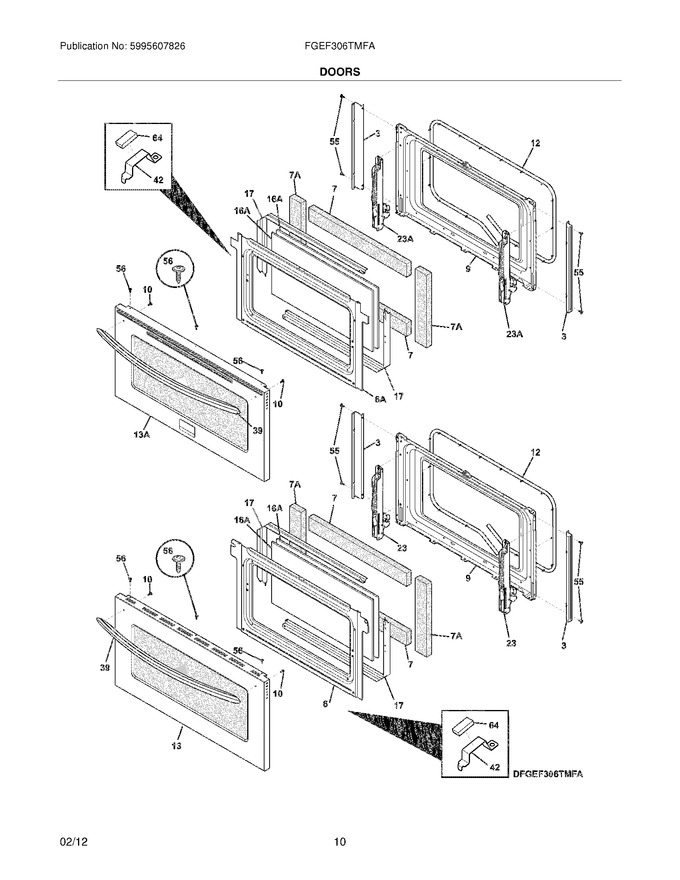

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301432		Trim,oven Door ,black ,side				$ 38.96
6	318260525		Baffle,door ,lower		Appelez-nous	-
7	318372001		Insulation,20.5 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
9	318259688		Liner,door		Appelez-nous	-
10	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
12	318053154		Seal,oven Door				$ 93.87
13	318934303		Panel Assembly,lower Door ,stainless ,outer				$ 306.81
17	318640200		Reatiner,glass ,inner ,(2)				$ 26.83
23	318567123		Hinge,door ,lower Oven ,(2)		Appelez-nous	-
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
55	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
56	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
64	318165800		Spacer				$ 17.72
13A	318934302		Panel Assembly,upper Door ,stainless ,outer,w/badge				$ 624.54
16A	318212216		Glass,oven Door ,heat Barrier ,hbii				$ 160.76
23A	318567121		Hinge,door ,upper Oven ,(2)				$ 98.81
6A	318260528		Baffle,door ,upper		Appelez-nous	-
7A	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	316433603		Label,anti-tip				$ 3.55
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12

    View Diagram in Separate Window       Print Part List
