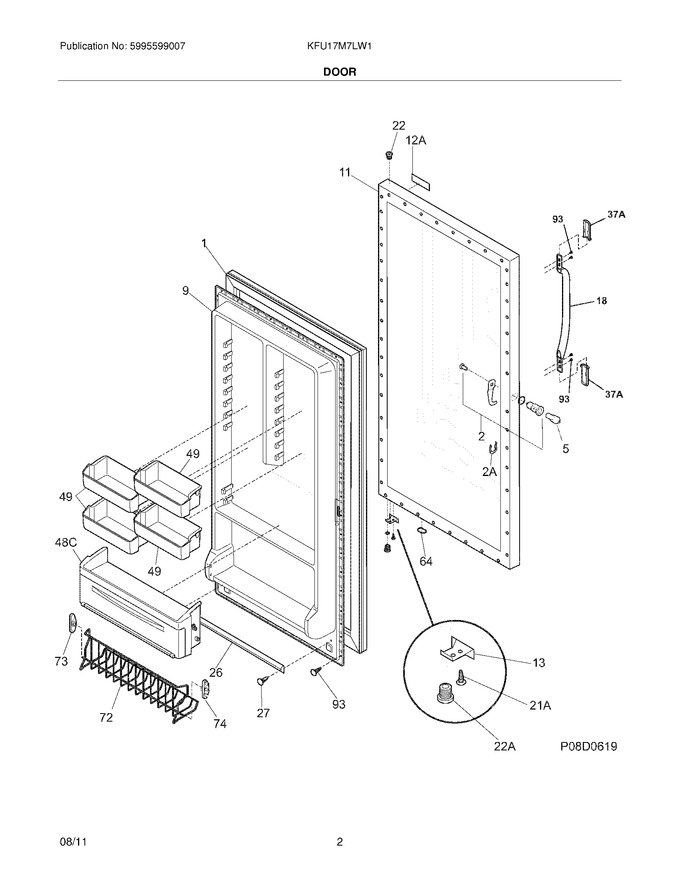

SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507200 | Gasket-door,white (Replaces: 216522359) |
|
Immediately | $ 188.19 | ||||
| 2 | 297318600 | Lock Assy |
|
$ 36.87 | |||||
| 5 | 297147700 | Key,lock |
|
Immediately | $ 7.57 | ||||
| 9 | 297185800 | Panel-inner Door,frzr |
|
$ 147.95 | |||||
| 11 | 297352709 | Panel,outer Door ,white |
|
$ 183.10 | |||||
| 13 | 297257000 | Door Stop,chrome ,rh |
|
$ 16.63 | |||||
| 18 | 297311201 | Handle-door,white |
|
Immediately | $ 80.60 | ||||
| 22 | 216970802 | Bearing,hinge W/o`ring ,top (Replaces: 216970800) |
|
Immediately | $ 10.85 | ||||
| 26 | 216524201 | Gasket,secondary |
|
$ 49.62 | |||||
| 27 | 5304472186 | Clip,panel Mtg |
|
$ 11.57 | |||||
| 49 | A00299203 | Bin-door,2-liter (Replaces: 297187200) |
|
$ 80.33 | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 58.12 | |||||
| 72 | 297186701 | Shelf,tilt Out ,wire |
|
$ 74.39 | |||||
| 73 | 216513900 | End Cap,shelf ,lh ,tilt-out |
|
$ 48.86 | |||||
| 74 | 216514000 | End Cap,shelf ,rh ,tilt-out |
|
$ 48.05 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 12A | 216373000 | Frame-nameplate |
|
$ 4.04 | |||||
| 21A | 297197500 | Screw,door Stop Mtg ,fh38-16x.750 ,p Twin |
|
$ 14.46 | |||||
| 22A | 297006800 | Bearing-hinge,btm, W/o`ring |
|
$ 12.29 | |||||
| 2A | 297213300 | Clip,spring |
|
$ 10.17 | |||||
| 37A | 297309800 | Trim-handle,white ,w/gray Band |
|
Immediately | $ 21.27 | ||||
| 48C | 297350101 | Bin-door,w/lid (Replaces: 297350100) |
|
Immediately | $ 139.23 | ||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 316095400 | Label-nameplate,kelvinator |
|
- |
