SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

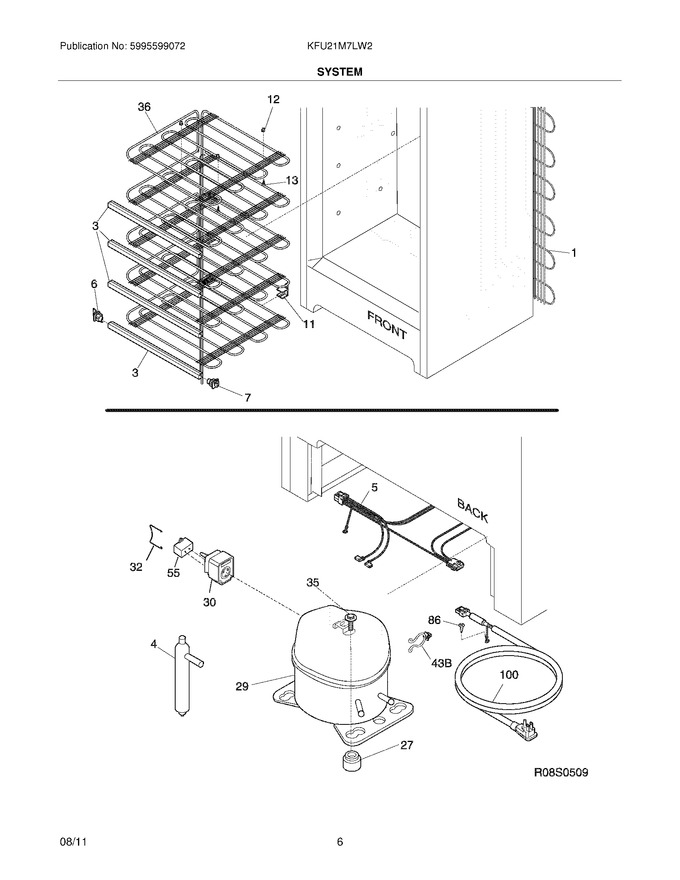

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304509723		Trim-shelf,evaporator   (Replaces: 216847806)				$ 31.81
4	5303305677		Dryer-filter   (Replaces: 216987501)			Immediately	$ 31.67
6	297001600		Support-shelf,front Lh				$ 18.08
7	297001500		Support-shelf,front Rh				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138901		Screw,hex Sems ,8-18ab X 1.00 ,evap		Appelez-nous	-
27	297293350		Grommet		Appelez-nous	-
30	216954236		Controller,compressor   (Replaces: 216954215)				$ 93.78
32	216954300		Clip,controller				$ 17.01
35	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
55	297286803		Capacitor-run,15 Mf   (Replaces: 216985001)			Immediately	$ 28.77
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
43B	297315800		Clip,wire				$ 10.13
F1	297161400		Condenser		Appelez-nous	-
F100	297366805		Cord-power   (Replaces: 297169904)				$ 68.68
F29	297223100		Compressor,w/o Electricals				$ 248.02
F36	5304506302		Evaporator,tubing Assy ,white   (Replaces: 297286000)				$ 324.59
F5	297171900		Harness-main,w/light				$ 66.34
NI	216502500		Sleeve,suction Line				$ 10.85
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03

    View Diagram in Separate Window       Print Part List
