SELECT A DIAGRAM

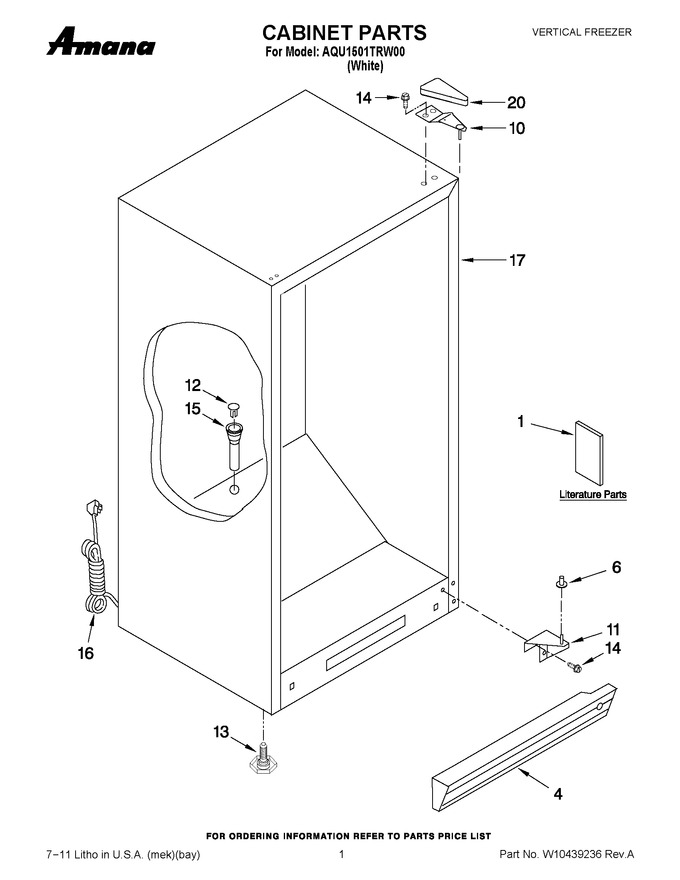

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10373279		Energy Label/tag		Appelez-nous	-
1	W10326798		Owners Manual		Appelez-nous	-
4	WP4-60461-005		Grille   (Replaces: 4-60461-005)				$ 100.70
6	4390731		Bushing, Hinge				$ 19.69
10	2-81016-105		Hinge, Top				$ 37.06
11	8210238		Hinge, Bottom   (Replaces: W10201501)				$ 38.28
12	4357019		Drain Plug		Appelez-nous	-
13	WP3-82710-001		Leg, Leveler   (Replaces: W10205065)			Immediately	$ 18.29
14	WP8204624		Screw   (Replaces: 4356830)				$ 14.99
15	4357269		Grommet, Drain		Appelez-nous	-
16	4-82399-001		Cord, Power				$ 52.24
17	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
20	4357279		Cover, Hinge (white)				$ 46.56

    View Diagram in Separate Window       Print Part List
