SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

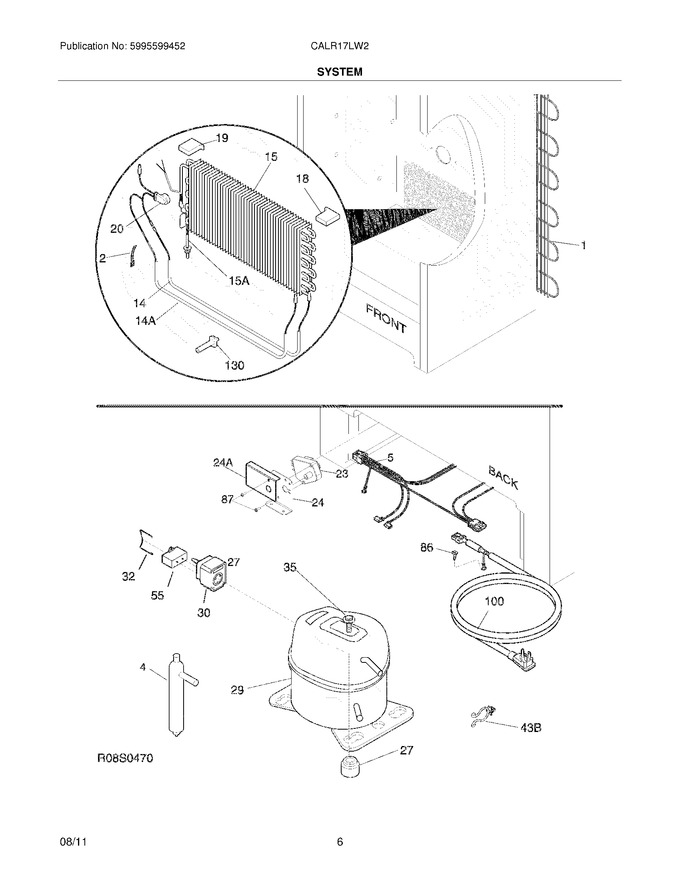

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
5	297244600		Harness-main				$ 130.44
14	297253602		Defrost Heater   (Replaces: 297216102)				$ 85.69
18	297078701		Insulator-evap,styrofoam ,rh				$ 3.62
19	297078801		Insulator-evap,styrofoam ,lh				$ 3.62
20	216731001		Thermostat, Defrost			Immediately	$ 81.75
24	216968501		Bracket-timer				$ 74.70
27	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 14.41
30	216954200		Controller,compressor ,5 Speed				$ 63.79
32	216954300		Clip,controller				$ 17.01
35	297368500		Bolt,compressor		Appelez-nous	-
55	297286812		Run Capacitor,10mf   (Replaces: 297286801)			Immediately	$ 11.78
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
130	297244700		Support,evaporator Mtg				$ 4.26
15A	297217900		Heat Exchanger   (Replaces: 297231800)			Immediately	$ 91.82
24A	297207900		Guard,timer				$ 5.72
43B	297315800		Clip,wire				$ 10.13
F1	5300083897		Condenser				$ 538.37
F100	297366805		Cord-power   (Replaces: 297169904)				$ 68.68
F14A	297222901		Heater				$ 73.40
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F23	5304518034		Timer Defrost 115v Tab   (Replaces: 297318010)			Immediately	$ 57.55
F29	5304507767		Compressor,w/o Electricals   (Replaces: 216966300)				$ 726.41
F4	5303305677		Filter - Dryer   (Replaces: 216938601)			Immediately	$ 31.67
NI	216695300		Relay				$ 77.97
NI	216683900		Thermostat,service Part				$ 61.62
NI	216502500		Sleeve,suction Line				$ 10.85
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03

    View Diagram in Separate Window       Print Part List
