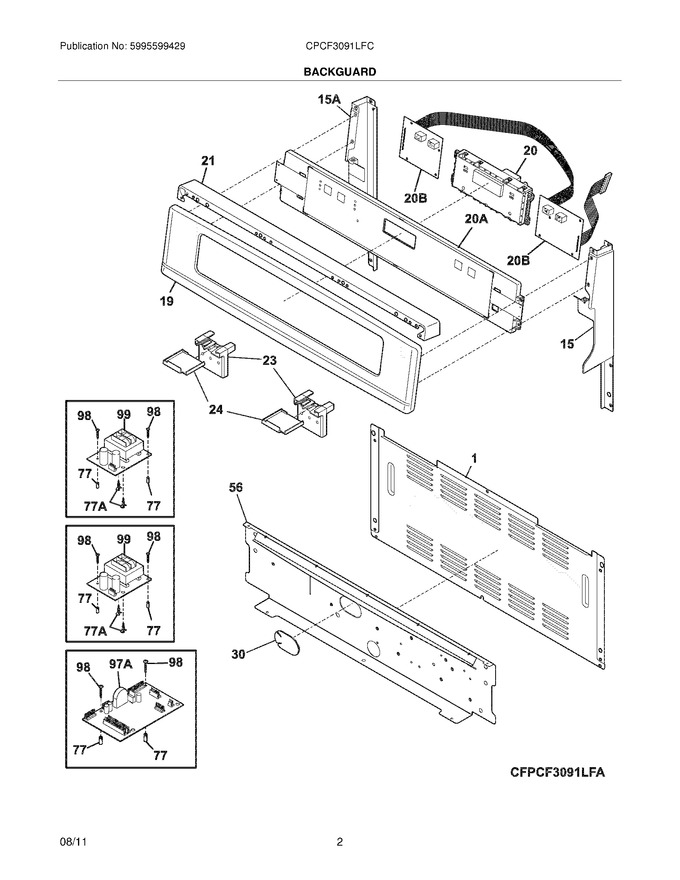

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield,rear Wall				$ 70.04
15	316546702		Cap,backguard ,black ,rh End				$ 52.55
19	316572402		Panel,backguard ,br Alum				$ 339.36
21	316546605		Cap,backguard ,black ,top   (Replaces: 316546601)				$ 66.91
23	316573600		Bracket,support ,bottom				$ 18.38
24	316574200		Bracket,support ,top ,membrane				$ 17.64
30	316577600		Plug,button ,oval ,harness				$ 14.89
56	316370109		Shield,backguard ,black				$ 45.15
77	316247900		Spacer,power Board				$ 44.65
98	5303289910		Screw,8a ,1``				$ 5.67
15A	316546703		Cap,backguard ,black ,lh End				$ 64.47
77A	316114100		Spacer				$ 60.96
F20	316560112		Controller,electronic ,es540				$ 383.93
F20A	316549108		Membrane,touch Control ,silver ,assembly				$ 279.51
F20B	316576800		Board Assembly,display ,esec20m ,interface				$ 230.18
F97A	316442020		Board,user Interface ,(uib)				$ 217.19
F99	316435703		Board,power Supply			Immediately	$ 394.48
FNI	316525641		Harness,wiring ,uib ,to Filter Board				$ 83.21
FNI	316580502		Harness,wiring ,uib ,to Membrane				$ 29.66
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316305000		Bushing,open Hole ,induction Leads				$ 21.89
NI	316452200		Clip,wire		Appelez-nous	-
NI	316457000		Retainer,wire ,p-lock ,stick On		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
