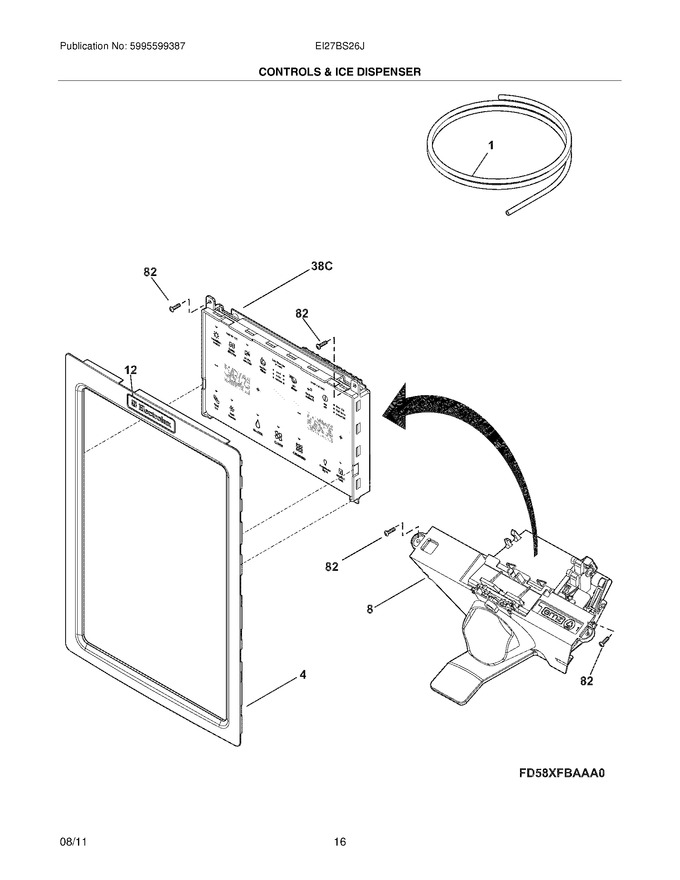

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976424 | Tube-water,64.00`` ,yellow |
|
$ 20.89 | |||||
| 4 | 241757502 | Cover-module,black |
|
$ 70.82 | |||||
| 8 | 242100006 | Module-dispenser,clear |
|
- | |||||
| 12 | 241873302 | Nameplate,black |
|
$ 10.21 | |||||
| 82 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| F38C | 242102802 | Board-control,assembly |
|
$ 266.27 | |||||
| FNI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| FNI | 241510904 | Harness-dispenser,grounding |
|
$ 60.96 | |||||
| NI | 241920106 | Tube-water Inlet, Green (Replaces: 241920102) |
|
Immediately | $ 60.67 | ||||
| NI | 5303918484 | Chute-ice (Replaces: 242105401) |
|
$ 30.47 | |||||
| NI | 241965901 | Tube-water,formed ,64.86`` |
|
$ 33.71 | |||||
| NI | 218976423 | Tube-water Inlet,56.00`` ,brown/tan |
|
$ 16.13 | |||||
| NI | 241964704 | Tube-water |
|
$ 17.48 |
