SELECT A DIAGRAM

01 - Cover


03 - Backguard

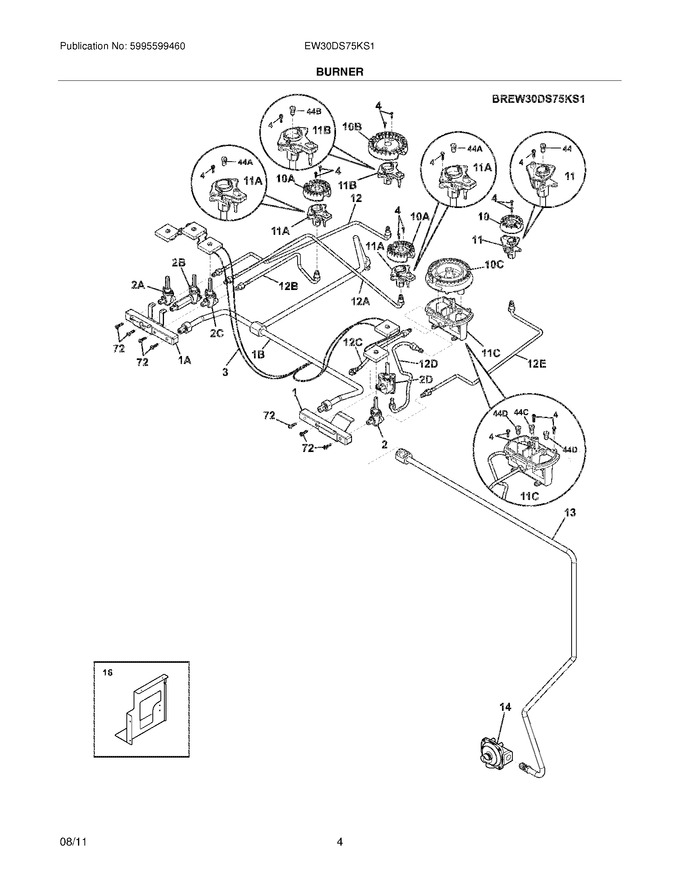

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


12 - Wiring Diagram


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
12	318901301		Tubing,14k Burner ,lh Rear		Appelez-nous	-
13	318902302		Tubing,manifold Supply   (Replaces: 318902301)		Appelez-nous	-
16	318590003		Panel,regulator Mtg.				$ 51.50
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
12A	318916807		Tube,9.5k Burner ,center		Appelez-nous	-
12B	318901502		Tubing,9.5k Burner ,lh Front		Appelez-nous	-
12C	318901900		Tubing,18k Burner ,rh Front				$ 28.88
12D	318901700		Tubing,18k Burner ,rh Front				$ 34.49
12E	318901100		Tubing,5k Burner ,rh Rear		Appelez-nous	-
1B	318305412		Tube,manifold ,interconnect		Appelez-nous	-
F1	318941200		Manifold,assembly ,right Side		Appelez-nous	-
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10B	316438400		Burner,sealed ,17k			Immediately	$ 83.42
F10C	316525401		Burner,sealed ,dual ,18k				$ 187.54
F11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11A	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F11B	316543202		Ignitor/orifice Assy.,top Burner ,right Front,16k ,w/holder ,tube			Immediately	$ 11.76
F11C	316525103		Ignitor/orifice Assy.,top Burner ,18k ,w/holder				$ 219.39
F14	318122721		Regulator,pressure			Immediately	$ 126.65
F1A	318941212		Manifold,assembly ,left Side   (Replaces: 318941201)		Appelez-nous	-
F2	318387400		Valve,top Burner ,5k				$ 174.43
F2A	318387401		Valve,top Burner ,9.5k				$ 166.56
F2B	318589200		Valve Assembly,9.5k Burner ,center				$ 86.78
F2C	318387402		Valve,top Burner ,14k				$ 182.86
F2D	316574901		Valve,top Burner ,18k				$ 89.51
F3	318232671		Wiring Harness,w/igntr Switch				$ 177.08
F44	316527504		Orifice,top Burner ,5k				$ 22.68
F44A	316527500		Orifice,top Burner ,9.5k				$ 21.40
F44B	316527508		Orifice,top Burner ,16k				$ 18.43
F44C	316523509		Orifice,top Burner ,center ,18k				$ 20.69
F44D	316523512		Orifice,top Burner ,18k		Appelez-nous	-
FNI	318199795		Wiring Harness,ignitor				$ 91.01
FNI	318127451		Lp Conversion Kit		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	318064866		Instruction Sheet,lp Conversion		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
