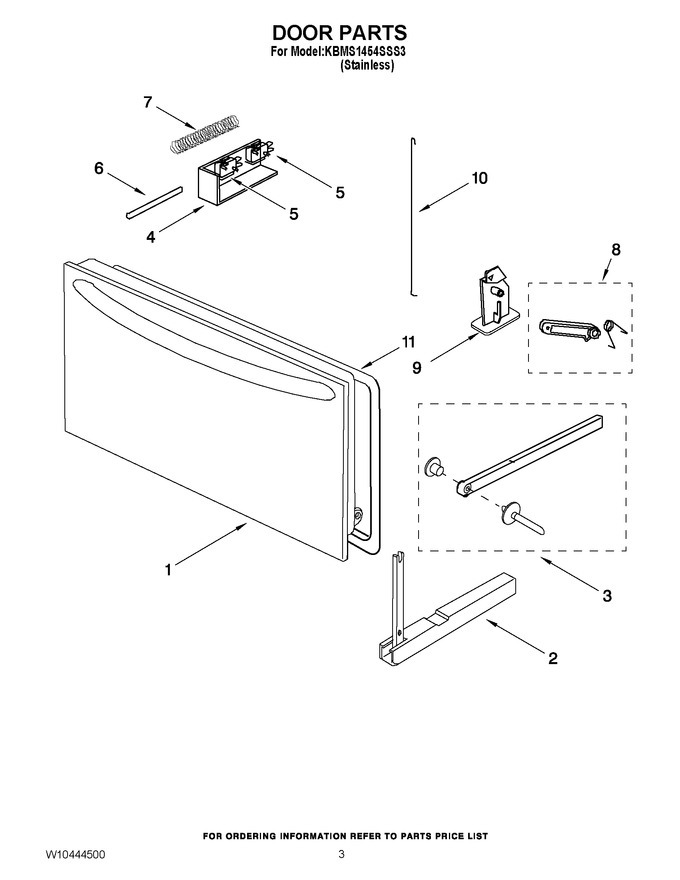

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Parts
02 - Cabinet Parts
03 - Door Parts
04 - Top Venting Parts
05 - Oven Interior Parts
06 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10426256 | Door Assembly (stainless) |
|
- | |||||
| 2 | W11700293 | Hinge Assembly (Replaces: 8205733) |
|
Immediately | $ 65.96 | ||||
| 3 | 8205687 | Sliding Arm Assy |
|
- | |||||
| 4 | WP8205683 | Switch Holder (Replaces: 8205683) |
|
Immediately | $ 89.47 | ||||
| 5 | W10211972 | Switch (Replaces: 4375346) |
|
Immediately | $ 47.16 | ||||
| 6 | WPW10120235 | Push-rod (Replaces: 8205684) |
|
Immediately | $ 6.27 | ||||
| 7 | W11715912 | Spring Cam (Replaces: 8205685) |
|
Immediately | $ 6.44 | ||||
| 8 | WPW10128850 | Lift Arm & Spring (Replaces: W10128850) |
|
Immediately | $ 121.78 | ||||
| 9 | W11684510 | Support (Replaces: 8205686) |
|
Immediately | $ 13.30 | ||||
| 10 | W11700292 | Spring, Torsion (Replaces: 8205704) |
|
$ 61.97 | |||||
| 11 | 8205789 | Gasket |
|
- |
