SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts

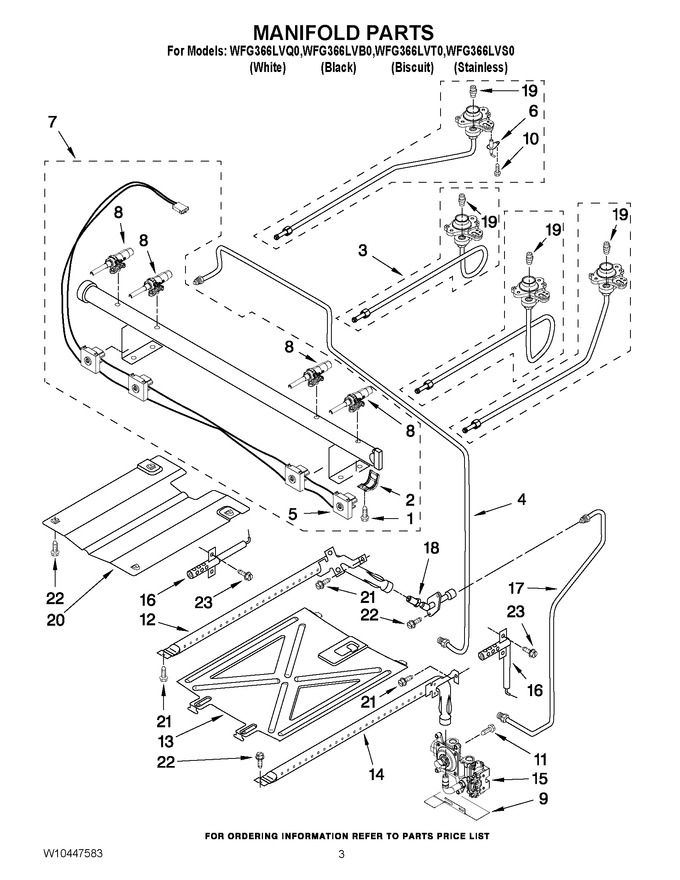

03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8273096 | Screw, Valve |
|
$ 5.27 | |||||
| 2 | 8523249 | Bracket, Mounting |
|
- | |||||
| 3 | W10177322 | Assembly, Orifice W/tubing (rf) |
|
- | |||||
| 3 | W10177163 | Assembly, Orifice W/tubing (rr) |
|
- | |||||
| 3 | W10177165 | Assembly, Orifice W/tubing (lr) |
|
- | |||||
| 3 | WPW10201349 | Assembly, Orifice W/tubing (lf) (Replaces: W10177166) |
|
$ 101.31 | |||||
| 4 | W10157928 | Tubing (manifold To Regulator) |
|
$ 94.01 | |||||
| 5 | WPW10295998 | Harness, Igniter (w/switches) (Replaces: 8523406) |
|
$ 195.62 | |||||
| 6 | WPW10216419 | Electrode (Replaces: W10170546) |
|
Immediately | $ 31.47 | ||||
| 7 | W10176502 | Assembly, Manifold |
|
- | |||||
| 8 | 8273004 | Valve (rr) |
|
$ 122.16 | |||||
| 8 | WP9757218 | Valve (lf - Rf - Lr) (Replaces: 9757218) |
|
$ 230.71 | |||||
| 9 | W10224921 | Bracket, Regulator |
|
- | |||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 11 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
$ 205.16 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 217.31 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 193.77 | |||||
| 15 | WPW10293048 | Valve/regulator (Replaces: 9761959) |
|
Immediately | $ 398.39 | ||||
| 16 | WP8054129 | Igniter (broil) (Replaces: 8054129) |
|
Immediately | $ 123.43 | ||||
| 16 | WP9758079 | Igniter (bake) (Replaces: 9758079) |
|
Immediately | $ 36.91 | ||||
| 17 | 8272222 | Tubing (broiler Fitting To Valve) |
|
$ 97.58 | |||||
| 18 | 3196489 | Fitting, Broiler |
|
- | |||||
| 19 | WPW10170506 | Orifice, Burner (rr) (Replaces: W10170506) |
|
$ 83.87 | |||||
| 19 | WPW10170508 | Orifice, Burner (lr) (Replaces: W10170508) |
|
$ 81.61 | |||||
| 19 | WPW10185023 | Orifice, Burner (lf) (Replaces: W10185023) |
|
$ 80.62 | |||||
| 20 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 21 | 3196265 | Screw |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 23 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.23 | |||||
| NI | WPW10170534 | Spuds, Lp Gas (kit) (Replaces: W10170534) |
|
$ 95.05 |
