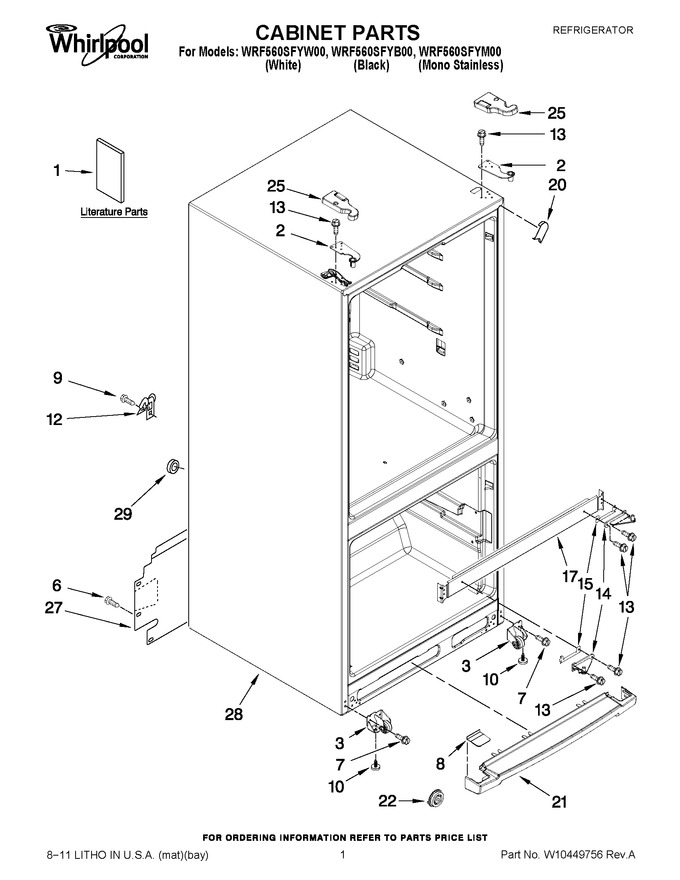

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10400969 | Use & Care Guide |
|
- | |||||
| 1 | W10398840 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10360468 | Energy Label |
|
- | |||||
| 2 | W10546298 | Hinge, Top (left) (Replaces: W10366254) |
|
$ 60.13 | |||||
| 2 | W11573371 | Hinge, Top (right) (Replaces: W10370393) |
|
Immediately | $ 21.32 | ||||
| 3 | WPW10359256 | Roller, Front (2) (left) (Replaces: W10359256) |
|
Immediately | $ 46.65 | ||||
| 3 | WPW10359255 | Roller, Front (2) (right) (Replaces: W10359255) |
|
Immediately | $ 86.27 | ||||
| 6 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 73.29 | |||||
| 8 | W10353930 | Cover, Toe Grille (black) |
|
$ 73.15 | |||||
| 8 | WPW10339257 | Cover, Toe Grille (white) (Replaces: W10339257) |
|
$ 73.22 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.07 | ||||
| 12 | 549193 | Clamp, Cord |
|
$ 12.05 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 14 | WPW10521409 | Hinge, Center (right) (Replaces: W10363677) |
|
Immediately | $ 32.70 | ||||
| 14 | WPW10521411 | Hinge, Center (left) (Replaces: W10363678) |
|
Immediately | $ 66.42 | ||||
| 15 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 9.59 | |||||
| 17 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 20 | W10851579 | Corner Filler (2) (grey) (Replaces: W10283961) |
|
Immediately | $ 6.47 | ||||
| 20 | W11252732 | Corner Filler (2) (black) (Replaces: W10283960) |
|
$ 11.21 | |||||
| 20 | WPW10283959 | Corner Filler (2) (white) (Replaces: W10283959) |
|
$ 7.04 | |||||
| 21 | WPW10300127 | Grille (white) (Replaces: W10300127) |
|
$ 138.42 | |||||
| 21 | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 92.99 | ||||
| 21 | WPW10353933 | Grille (black) (Replaces: W10353933) |
|
$ 139.55 | |||||
| 22 | W10331226 | Drum, Toe Grille |
|
$ 40.64 | |||||
| 25 | W10465765 | Cover, Hinge (white Ls) (Replaces: W10370394) |
|
$ 17.63 | |||||
| 25 | W10406590 | Cover, Hinge (black Ls) |
|
$ 11.85 | |||||
| 25 | W10465770 | Cover, Hinge (black Rs) (Replaces: W10406591) |
|
$ 19.52 | |||||
| 25 | W10465768 | Cover, Hinge (grey Ls) (Replaces: W10406927) |
|
$ 17.60 | |||||
| 25 | W10406928 | Cover, Hinge (grey Rs) |
|
$ 17.42 | |||||
| 25 | W10465764 | Cover, Hinge (white Rs) (Replaces: W10370395) |
|
$ 18.44 | |||||
| 27 | W10349971 | Cover, Unit |
|
$ 184.79 | |||||
| 28 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 29 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 8.94 |
