View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

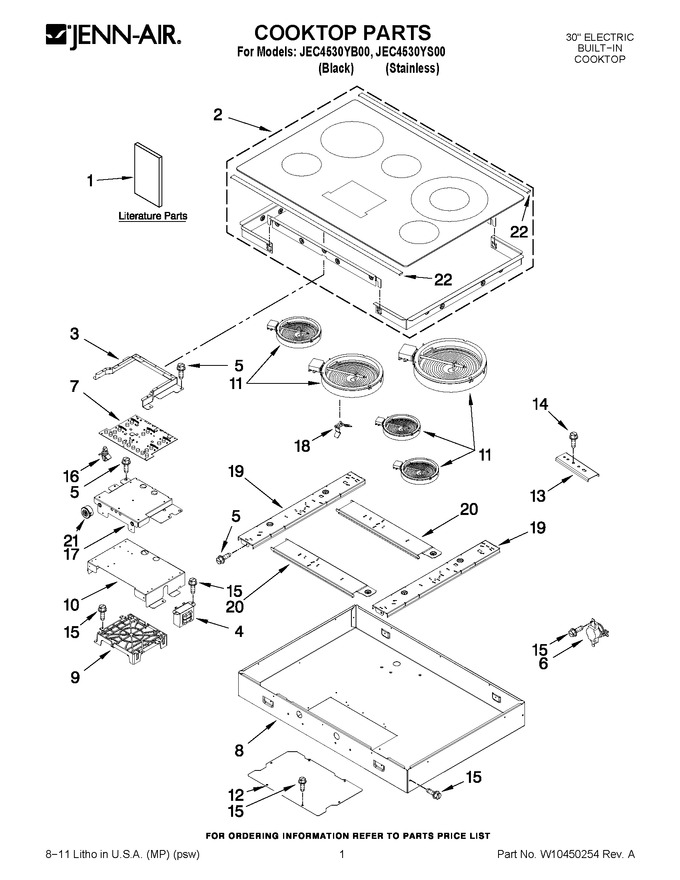

01 - Cooktop Parts
02 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10433730 | Installation Instructions |
|
- | |||||
| 1 | W10373103 | Installation Instructions Oven Under Cooktop |
|
- | |||||
| 1 | W10433731 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10325427 | Tech Sheet (english) |
|
- | |||||
| 1 | W10342105 | Tech Sheet (french) |
|
- | |||||
| 2 | W10433724 | Cooktop (stainless (stainless (stainless Includes Trim)) |
|
- | |||||
| 2 | W10433720 | Cooktop (black) |
|
- | |||||
| 3 | W10311898 | Shield, Outer |
|
- | |||||
| 4 | WP9760588 | Transfromer (Replaces: 9760588) |
|
$ 237.07 | |||||
| 5 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 6 | WP7450P034-60 | Limit, Oven (Replaces: 7450P034-60) |
|
$ 195.82 | |||||
| 7 | WPW10333979 | User Interface (Replaces: W10333979) |
|
$ 390.58 | |||||
| 8 | WPW10311953 | Box-burner (Replaces: W10311953) |
|
$ 226.48 | |||||
| 9 | W10353571 | Appliance Mgr. |
|
$ 348.44 | |||||
| 10 | W10311795 | Plate, Switch |
|
- | |||||
| 11 | WPW10245539 | Element, Surface (center) (Replaces: W10245539) |
|
$ 130.79 | |||||
| 11 | WPW10275049 | Element, Surface (rr) (Replaces: W10275049) |
|
Immediately | $ 282.81 | ||||
| 11 | WPW10248258 | Element, Surface (lr) (Replaces: W10248258) |
|
$ 291.04 | |||||
| 11 | W11171119 | Element, Surface (lf,rf) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 12 | W10312152 | Plate, Bottom |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 16 | W10225914 | Support, Locking |
|
- | |||||
| 17 | W10311794 | Plate, Support |
|
$ 149.35 | |||||
| 18 | WPW10225448 | Spring, Push-in (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 19 | W10311789 | Rail, Vertical |
|
$ 63.05 | |||||
| 20 | W10311792 | Rail, Horizontal |
|
- | |||||
| 21 | FE02313 | Bushing, Elect |
|
- | |||||
| 22 | W10422075 | Trim, (for Stainless Model Only) |
|
$ 109.16 |
