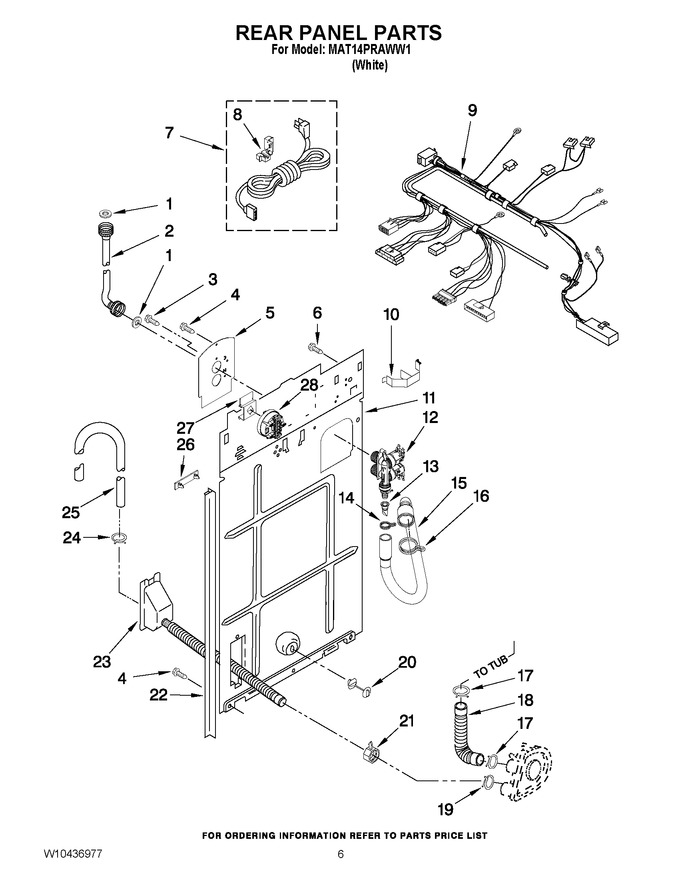

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: W10242307) |
|
$ 6.93 | |||||
| 2 | WP3949381 | Hose, Water Inlet (2) (red Coupler) (Replaces: 3949381) |
|
$ 42.94 | |||||
| 2 | WP3949380 | Hose, Water Inlet (2) (blue Coupler) (Replaces: 3949380) |
|
$ 32.24 | |||||
| 3 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.07 | ||||
| 4 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 5 | 285930 | Plate, Mixing Valve (Replaces: 8541624) |
|
$ 67.10 | |||||
| 6 | WP3351614 | Screw, 10-24 X 3/8 (Replaces: 3351614) |
|
Immediately | $ 6.26 | ||||
| 7 | 285928 | Cord, Power (Replaces: 3976231) |
|
$ 118.00 | |||||
| 8 | 3952821 | Strain Relief, Power Cord To Rear Panel |
|
- | |||||
| 9 | W10153452 | Harness, Wiring (for Detail See Pages 12 & 13) |
|
- | |||||
| 10 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 11 | 8541652 | Panel, Rear |
|
- | |||||
| 12 | WPW10151482 | Valve, Water Inlet & Thermistor Assy. (Replaces: W10151482) |
|
$ 187.99 | |||||
| 13 | 8055306 | Check Valve, Duck Bill |
|
$ 13.67 | |||||
| 14 | WP596669 | Clamp, Hose (Replaces: W10156124) |
|
Immediately | $ 7.56 | ||||
| 15 | W10114765 | Hose, Fresh Fill |
|
$ 36.45 | |||||
| 16 | WP285655 | Clamp, Hose (Replaces: W10151157) |
|
Immediately | $ 7.55 | ||||
| 17 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.03 | ||||
| 18 | 285871 | Hose, Pump To Tub (includes Item 17) (Replaces: 3951449) |
|
Immediately | $ 24.01 | ||||
| 19 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 7.55 | ||||
| 20 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 17.01 | ||||
| 21 | 3976395 | Clamp, Hose |
|
$ 11.96 | |||||
| 22 | WP62747 | Pad, Rear Panel (Replaces: 3354204) |
|
$ 23.63 | |||||
| 23 | WPW10358151 | Drain Hose Assy. (includes Item 21) (Replaces: W10358151) |
|
$ 95.34 | |||||
| 24 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.55 | ||||
| 25 | WPW10141216 | Hose, Discharge Gooseneck (Replaces: W10141216) |
|
$ 52.49 | |||||
| 26 | 389379 | Retainer, Side To Feature Panel (2) |
|
$ 5.84 | |||||
| 27 | W10133269 | Bracket, Pressure Switch |
|
- | |||||
| 28 | W10414159 | Pressure Switch Triple-level |
|
$ 182.93 |
