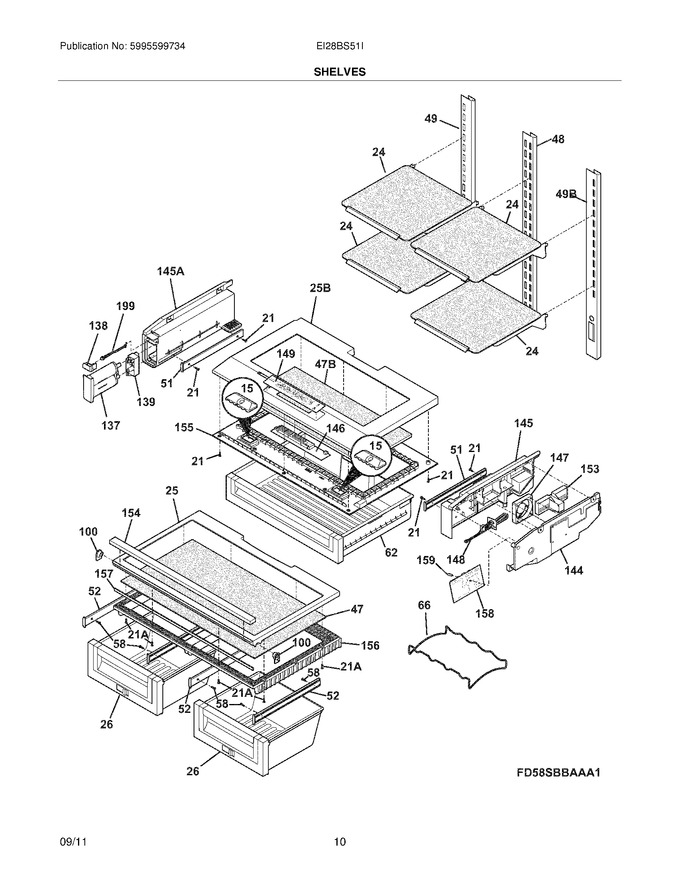

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
24	241839901		Shelf-glass,formed				$ 281.14
25	241802206		Frame-crisper Cover,upper				$ 246.12
26	241772803		Pan-crisper		Appelez-nous	-
47	241768801		Insert-pan Cover,glass				$ 72.66
48	241774201		Channel-shelf Mtg,center				$ 43.73
49	241773802		Channel-shelf Mtg,side ,lh		Appelez-nous	-
51	241816102		Slide-deli				$ 181.39
52	241769001		Slide-crisper Cover				$ 126.17
58	241941202		Screw,8-18 X 3/8				$ 15.17
62	241827205		Pan-deli				$ 262.19
66	241748901		Rack-wine				$ 77.97
100	241768601		Support-crspr Cover				$ 19.13
137	EWF01C		Filter,water ,carbon Cassette ,front ,with O`rings   (Replaces: 241932301)			Immediately	$ 75.59
138	241885901		Button-filter Release				$ 28.35
139	240396002		Base-water Filter			Immediately	$ 119.66
144	241803902		Cover-deli Air Control				$ 127.96
145	241803802		Housing-deli Air Control				$ 136.50
148	241782001		Heater-ptd,115 V				$ 194.90
154	241879902		Trim-crisper Cover				$ 39.44
155	241803404		Frame-deli Cover,lower				$ 204.12
156	241872003		Frame-crisper Cover,lower		Appelez-nous	-
157	241872201		Beam-crisper Cover				$ 53.85
159	241815401		Cap,pcba Hold Down		Appelez-nous	-
199	240397501		Rod				$ 55.57
21A	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
25B	5303918423		Cover-pan,ptd ,cover Kit				$ 251.58
47B	241967401		Glass,2 Pane Insulatd				$ 225.39
49B	241774301		Channel-shelf Mtg,side ,rh				$ 43.05
F137	240527001		O-ring,wtr Filter Base   (Replaces: 240526901)				$ 10.62
F139	241858401		Screw,no.6 X 1/2 Hilo				$ 13.05
F145	242058706		Support,rail		Appelez-nous	-
F146	241958401		Control-electronic,ptd				$ 272.87
F146	5304521780		Harness-power Ptd   (Replaces: 241822602)				$ 23.51
F146	242130101		Clip,retainer ,ptd Board		Appelez-nous	-
F147	241825704		Fan Assembly,motor ,with Blade				$ 289.58
F147	241936201		Damper-rubber,ptd Fan		Appelez-nous	-
F148	240451503		Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe				$ 3.79
F149	242025901		Overlay,electronic ,membrane Switch				$ 159.47
F15	241891101		Light-led				$ 59.85
F153	241775301		Motor-damper				$ 227.24
F153	241835402		Harness-wiring,mixing Valve				$ 23.39
F158	241955004		Board-main Power,ptd				$ 245.23
F199	240398401		Spring-filter Release Rod				$ 59.16
F25B	241862601		Harness-wiring,ptd W/led				$ 122.09
F25B	241862501		Harness-wiring,ptd Main W/led				$ 47.48
F47B	5304469950		Sealant,rubber Silicone			Immediately	$ 89.95
NI	242028508		Energy Guide		Appelez-nous	-
NI	241809203		Trim-shelf,hand Grip		Appelez-nous	-
NI	242010901		Roller Assy,deli Pan				$ 49.62

    View Diagram in Separate Window       Print Part List
