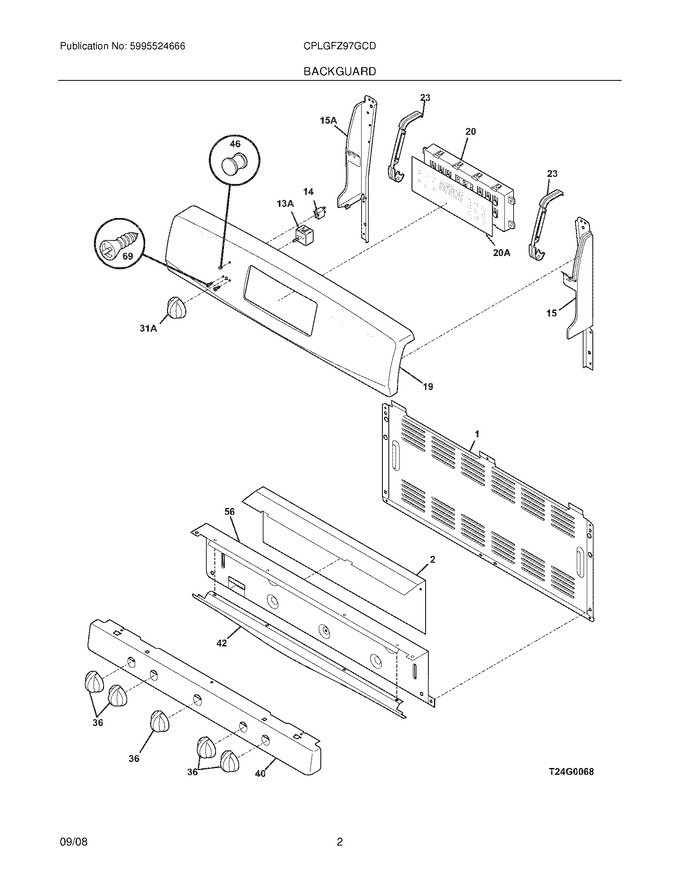

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
2	316497600		Shield,backguard ,inner				$ 66.31
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316424129		Panel,control ,stainless				$ 324.40
23	316419200		Bracket,clock ,(2)		Appelez-nous	-
36	316220009		Knob,top Valve ,black ,4				$ 55.36
40	316249031		Panel,manifold ,stainless Steel				$ 158.71
42	316416204		Trim,extrusion ,black   (Replaces: 316416200)				$ 43.99
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 16.77
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419700		Overlay,clock ,black ,w/mini Oven ,es510				$ 51.60
31A	316223002		Knob,control ,black			Immediately	$ 57.64
F13A	5304508926		Switch,infinite ,warmer   (Replaces: 316095503)			Immediately	$ 84.18
F20	316462806		Clock/timer,electronic ,es530				$ 338.33
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
