Diagram for 06 - Burner, Manifold And Gas Control
06 - Burner, Manifold And Gas Control

Diagram for 07 - Body Parts
07 - Body Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3203265 Baffle,oven Burner Appelez-nous -
2 5303935066 Ignitor, Oven   (Replaces: 5303131300) In-Stock Immediately $ 59.58

3 3131439 Burner-oven Special Order $ 204.59

4 3131438 Bracket, Valve Appelez-nous -
5 3203459 Valve-safety Special Order $ 303.64

6 5303271611 Tubing32/8 Valve/regl Appelez-nous -
7 5303280582 Control-regulator Appelez-nous -
8 08067934 Bracket-regulator Appelez-nous -
9 5303208495 Tubing-reg/manifold Pipe Appelez-nous -
10 5303271375 Manifold Pipe Appelez-nous -
11 316032001 Ignitor Switch (4) Special Order $ 69.35

12 316031900 Valve-top-3 Pos Appelez-nous -
13 5303283665 Burner-tube Rf Appelez-nous -
14 5303283667 Burner-tube Rr Appelez-nous -
15 5303283666 Burner-tube Lf Appelez-nous -
16 5303283668 Burner-tube Lr Appelez-nous -
17 3200277 Brkt-burner Mtg Appelez-nous -
18 3013279 Nut, Special, 4 Special Order $ 2.34

19 3200276 Base-ignitor Appelez-nous -
20 3016993 Retainer-ignitor Appelez-nous -
21 5303131147 Burner-top Double (2) Appelez-nous -
22 5303200669 Spark Module Appelez-nous -
23 3018603 Brkt Oven Burner Mtg Appelez-nous -
24 5303269845 Screw-burner Appelez-nous -

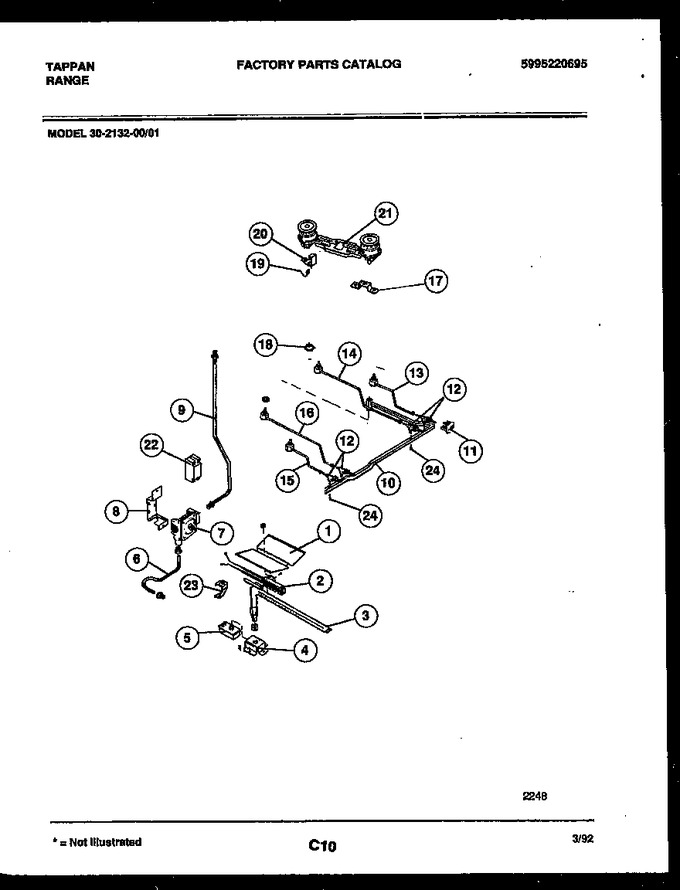

    View Diagram in Separate Window     Print Icon   Print Part List
