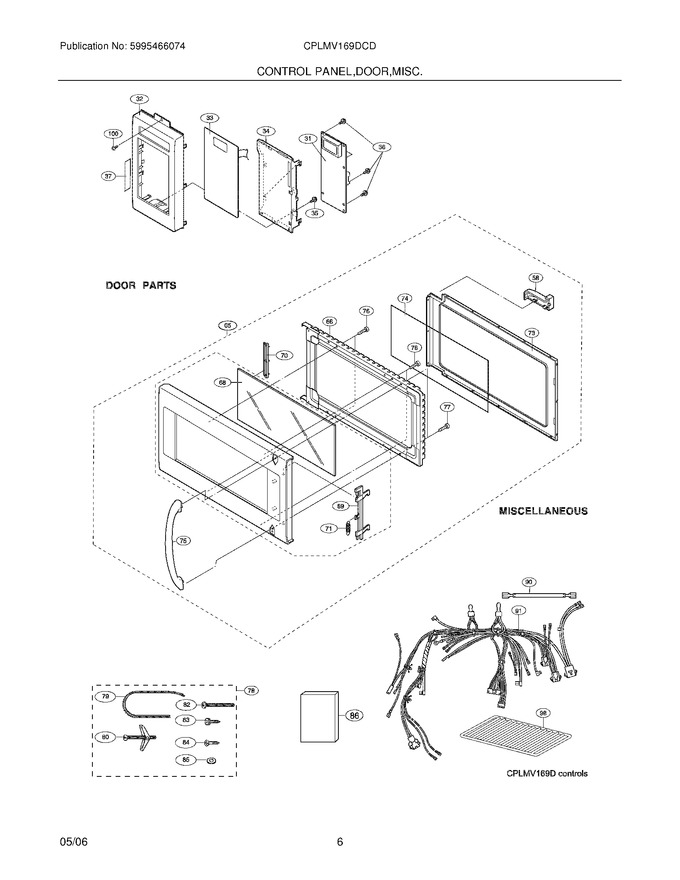

05 - Control/panel/door/misc


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	5304448491		Frame,control Panel ,stainless Steel				$ 211.67
34	5304440281		Panel,control Mount				$ 33.39
35	5303319584		Screw,control Panel ,3mm X 10mm		Appelez-nous	-
36	5304440282		Screw,control Board ,3mm X 10mm		Appelez-nous	-
37	5304440346		Label,user Caution				$ 34.73
58	5304440300		Door Stop		Appelez-nous	-
65	5304453894		Door Assy,complete ,stainless Steel ,with Handle		Appelez-nous	-
66	5304440305		Panel,inner Door ,black				$ 299.20
68	5304440311		Panel,glass ,door Front				$ 182.70
69	5304440314		Latch,door			Immediately	$ 51.13
70	5304440315		Clip,glass Retainer ,door				$ 3.81
71	5304440316		Spring,door Latch			Immediately	$ 61.00
73	5304440320		Frame,choke Cover ,inner Door		Appelez-nous	-
74	5304440321		Seal,door ,film		Appelez-nous	-
75	5304456145		Handle,door ,stainless Steel		Appelez-nous	-
76	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
77	5304456146		Screw,4 Mm X 12 Mm				$ 3.40
78	5303319625		Hardware,installation ,kit				$ 163.64
79	5303318761		Sleeve,power Cord ,grommet				$ 25.05
80	5303318762		Screw,toggle				$ 11.71
82	5304453722		Screw,5mm X 60mm				$ 10.53
83	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
84	5304453723		Screw,5mm X 35mm				$ 13.28
85	5304453724		Washer				$ 12.68
86	5304440330		Template,installation ,wall				$ 10.34
86	5304440329		Template,installation ,top		Appelez-nous	-
98	5304440338		Rack,microwave Oven ,wire				$ 256.10
100	5304440340		Screw,4mm X 12mm		Appelez-nous	-
F31	5304440345		Control Board,printed Circuit				$ 374.12
F33	5304443989		Touch Control,key Pad ,black				$ 163.02
F90	5304440331		Wire,high Voltage-a		Appelez-nous	-
F91	5304440347		Wiring Harness,main-a				$ 91.25
