SELECT A DIAGRAM

01 - Cover

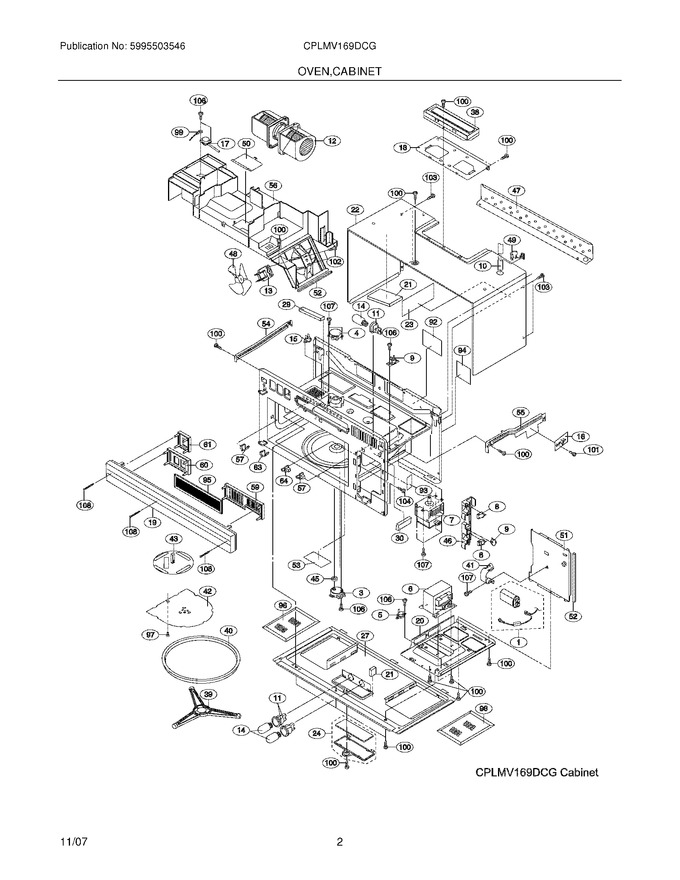

03 - Cabinet


05 - Control Panel/door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5304440031		Lamp,incandescent ,20 W ,(3)			Immediately	$ 12.85
18	5304440232		Plate,rear Stay		Appelez-nous	-
19	5304454540		Grille,exhaust ,stainless Steel		Appelez-nous	-
20	5304464340		Base,transformer ,right Side		Appelez-nous	-
21	5304440237		Cushion,cabinet		Appelez-nous	-
22	5304445465		Cabinet,outer Casing ,black				$ 221.45
23	5304440344		Wiring Diagram,schematic		Appelez-nous	-
24	5303319573		Lens/frame Assy,lamp				$ 117.34
27	5304464341		Cover,unit Base ,black				$ 44.84
29	5304441369		Cushion,cavity Top Pnl		Appelez-nous	-
30	5304441370		Cushion,magnetron Pad		Appelez-nous	-
38	5304464343		Damper Assembly,exhaust				$ 60.48
39	5304467717		Support Assy,turntable   (Replaces: 5304440284)				$ 122.18
40	5304440285		Tray,turntable ,glass				$ 92.03
41	5303319587		Retainer,capacitor Strap		Appelez-nous	-
42	5304440286		Cover,stirrer Fan		Appelez-nous	-
45	5304440288		Bushing,motor Shaft ,turntable				$ 16.45
46	5304440289		Latch Hook				$ 102.11
47	5304468135		Bracket,unit Mtg Plate ,rear   (Replaces: 5304464344)				$ 101.93
49	5303319605		Bushing,grommet ,power Cord				$ 45.73
50	5304440292		Cover,oven Lamp		Appelez-nous	-
51	5304440293		Duct,hood Intake ,right Side		Appelez-nous	-
52	5304440294		Cushion,intake Duct				$ 9.35
53	5304440295		Lens,lamp Filter				$ 14.86
54	5304461366		Support,chassis ,left Side				$ 44.05
55	5304461367		Support,chassis ,right Side				$ 53.12
56	5304440298		Duct,exhaust Hood		Appelez-nous	-
57	5304440299		Support,rack ,front		Appelez-nous	-
59	5304459558		Cover A,grille Louver				$ 36.96
60	5304464347		Cover B,grille Louver		Appelez-nous	-
61	5304464348		Cover C,grille Louver		Appelez-nous	-
63	5304441371		Support,rack ,left Rear				$ 4.99
64	5304441372		Support,rack ,right Rear		Appelez-nous	-
92	5304440333		Label,caution-dhhs		Appelez-nous	-
93	5304440334		Label,caution-monitor		Appelez-nous	-
94	5304440348		Label,caution-nhw		Appelez-nous	-
95	5304440335		Filter,inside Exhaust ,charcoal				$ 50.32
96	5303319568		Filter-grease, (2)			Immediately	$ 37.52
97	5304467773		Clip,canoe Type ,stirrer Cover   (Replaces: 5304440337)				$ 55.67
100	5304440340		Screw,4mm X 12mm		Appelez-nous	-
101	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
102	5304462830		Screw,4mm X 8mm		Appelez-nous	-
103	5303319639		Screw,wrapper,back				$ 7.79
104	5303319641		Screw				$ 12.76
106	5304453725		Screw,3mm X 8mm		Appelez-nous	-
107	5303319636		Screw		Appelez-nous	-
108	5304441378		Screw,black   (Replaces: 5303319640)				$ 15.90
F1	5304464687		Capacitor Assy,hv ,w/rectifier				$ 59.61
F10	5304440028		Power Cord,electric				$ 119.07
F11	5303319561		Receptacle,lamp Socket ,oven				$ 61.45
F12	5304440029		Motor,hood Fan				$ 459.06
F13	5304493152		Motor,cooling Fan   (Replaces: 5304448490)				$ 87.43
F15	5304440032		Thermal Cutout,oven Cavity				$ 26.99
F16	5304493151		Filter,noise ,electronic   (Replaces: 5303322968)				$ 54.76
F17	5304440033		Sensor,humidity ,cook Control				$ 223.65
F3	5304440021		Motor-turntable   (Replaces: 5304448488)				$ 82.64
F4	5304448489		Motor,stirrer Fan		Appelez-nous	-
F43	5304440287		Stirrer Assembly		Appelez-nous	-
F48	5304440291		Fan Blade,mag Cooling Fan				$ 46.36
F5	5304440023		Thermal Cutout,hood				$ 58.13
F6	5304440024		Transformer,power		Appelez-nous	-
F7	5304463439		Magnetron				$ 257.99
F8	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F9	5304468224		Switch Kit,monitor ,with Ct Fuse   (Replaces: 5304440027)			Immediately	$ 83.14
F99	5304440339		Wire,sensor Ground		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
