SELECT A DIAGRAM

01 - Cover


03 - Oven,cabinet

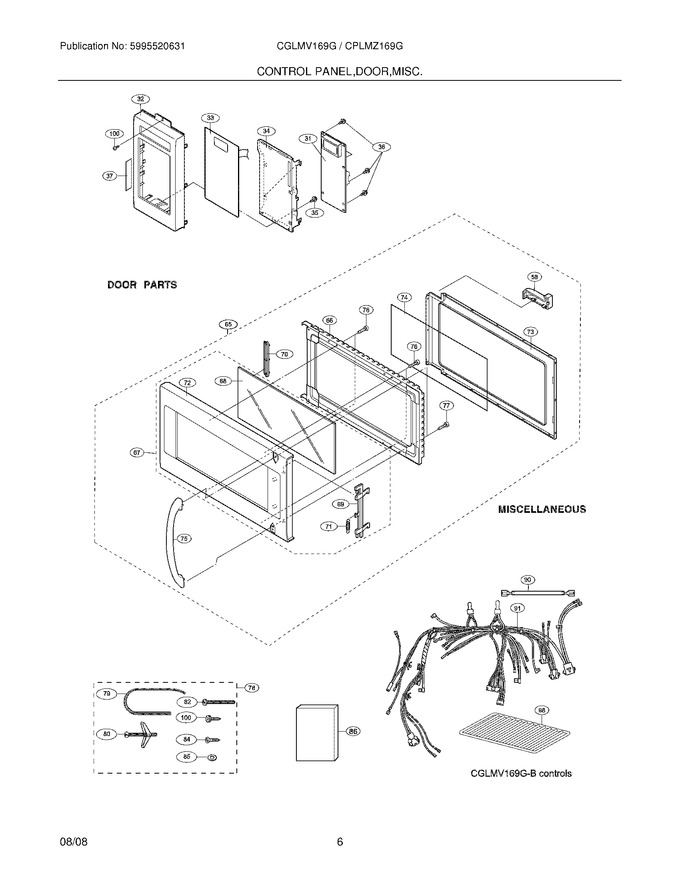

05 - Control Panel,door,misc.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	5304461361		Frame,control Panel ,stainless Steel				$ 254.32
34	5304440281		Panel,control Mount				$ 33.39
35	5304458568		Screw,3 Mm X 10 Mm		Appelez-nous	-
36	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
37	5304440346		Label,user Caution				$ 34.73
58	5304440300		Door Stop		Appelez-nous	-
66	5304440305		Panel,inner Door ,black				$ 299.20
67	5304466769		Frame Assembly,door ,stainless ,w/glass & Latch				$ 172.57
68	5304440311		Panel,glass ,door Front				$ 182.70
69	5304440314		Latch,door			Immediately	$ 51.13
70	5304440315		Clip,glass Retainer ,door				$ 3.81
71	5304440316		Spring,door Latch			Immediately	$ 61.00
72	5304451829		Frame,outer Door ,black		Appelez-nous	-
73	5304440320		Frame,choke Cover ,inner Door		Appelez-nous	-
74	5304440321		Seal,door ,film		Appelez-nous	-
75	5304456145		Handle,door ,stainless Steel		Appelez-nous	-
76	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
77	5304458213		Screw,4 Mm X 12 Mm		Appelez-nous	-
78	5304464349		Hardware,installation ,kit			Immediately	$ 57.11
79	5303318761		Sleeve,power Cord ,grommet				$ 25.05
80	5303318762		Screw,toggle				$ 11.71
82	5304453895		Screw,5mm X 85mm				$ 16.68
84	5304453723		Screw,5mm X 35mm				$ 13.28
85	5304453724		Washer				$ 12.68
86	5304451830		Template,installation ,top		Appelez-nous	-
86	5304464350		Template,installation ,wall				$ 26.62
98	5304440338		Rack,microwave Oven ,wire				$ 256.10
100	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
F31	5304440245		Control Board,printed Circuit		Appelez-nous	-
F33	5304443989		Touch Control,key Pad ,black				$ 163.02
F65	5304461371		Door Assy,stainless ,w/handle				$ 308.74
F90	5304440331		Wire,high Voltage-a		Appelez-nous	-
F91	5304464351		Wiring Harness,main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
