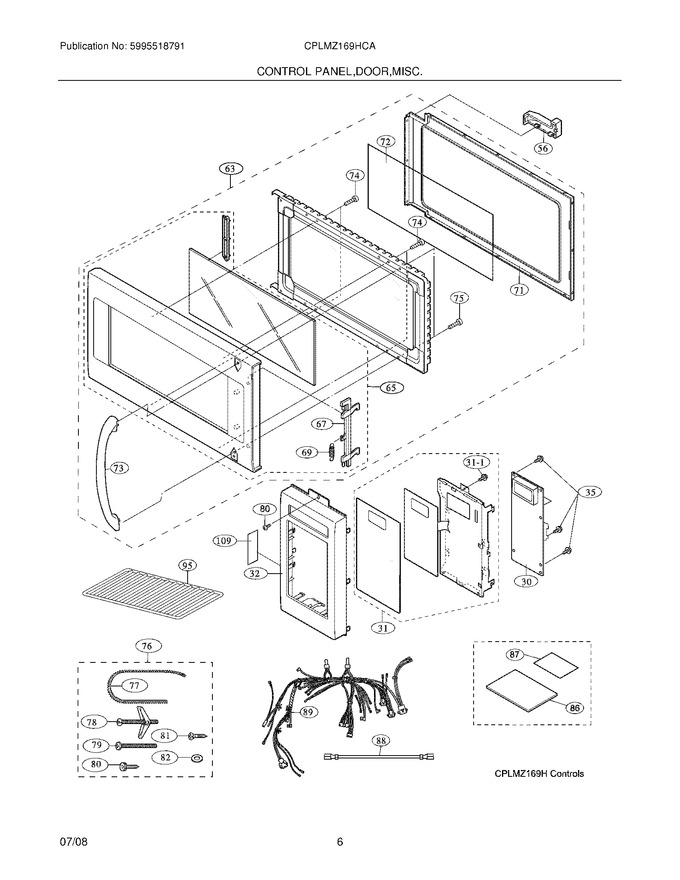

05 - Control Panel,door,misc.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	5304461361		Frame,control Panel ,stainless Steel				$ 254.32
35	5304467710		Screw,3 Mm X 8 Mm				$ 14.18
56	5304468199		Door Stop				$ 15.38
65	5304468210		Frame Assembly,door ,stainless				$ 297.41
67	5304440314		Latch,door			Immediately	$ 51.13
69	5304440316		Spring,door Latch			Immediately	$ 61.00
71	5304440320		Frame,choke Cover ,inner Door		Appelez-nous	-
72	5304440321		Seal,door ,film		Appelez-nous	-
73	5304456145		Handle,door ,stainless Steel		Appelez-nous	-
74	5304468233		Screw,4 Mm X 8 Mm		Appelez-nous	-
75	5304468213		Screw,4 Mm X 15 Mm		Appelez-nous	-
76	5304464349		Hardware Kit,installation   (Replaces: 5304467765)			Immediately	$ 57.11
77	5303318761		Sleeve,power Cord ,grommet				$ 25.05
78	5303318762		Screw,toggle				$ 11.71
79	5304453895		Screw,5mm X 85mm				$ 16.68
80	5304502863		Screw,4 Mm X 8 Mm ,white   (Replaces: 5304451552)				$ 10.85
81	5304453723		Screw,5mm X 35mm				$ 13.28
82	5304453724		Washer				$ 12.68
86	5304468216		Template,installation ,top				$ 27.98
87	5304468217		Template,installation ,wall		Appelez-nous	-
95	5304440338		Rack,microwave Oven ,wire				$ 256.10
109	5304468232		Label,user Caution		Appelez-nous	-
F30	5304468192		Control Board,printed Circuit				$ 466.52
F31	5304468212		Control Panel Assy,w/touch Pad				$ 285.64
F31-1	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
F63	5304461371		Door Assy,stainless ,w/handle				$ 308.74
F88	5304468214		Wire,ground		Appelez-nous	-
F89	5304468228		Wiring Harness,main				$ 102.35
