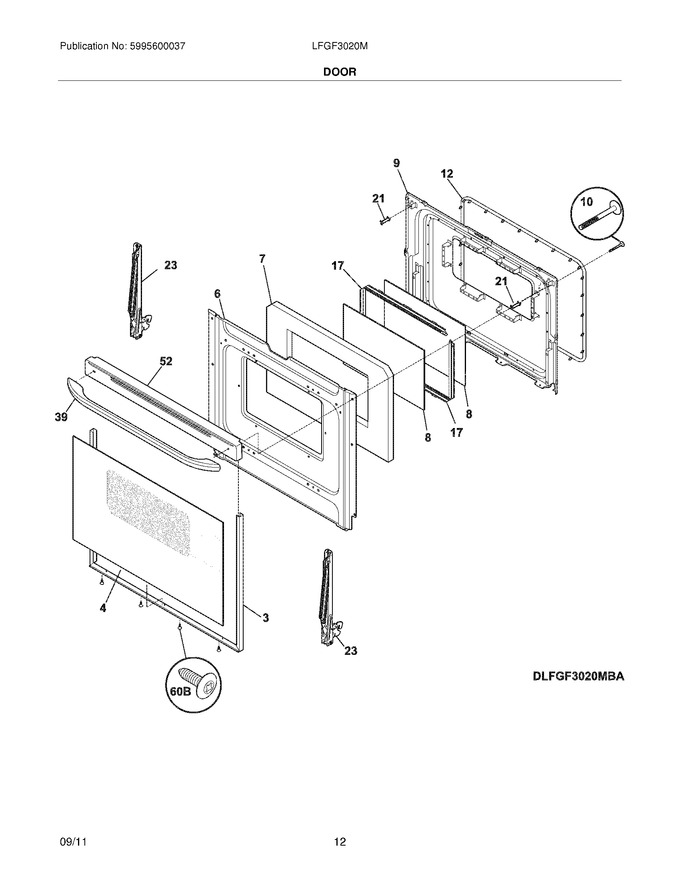

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935324		Trim Kit-door,3 Sided ,black ,w/tape				$ 80.80
4	316402604		Glass,door ,black		Appelez-nous	-
6	316402312		Shield,wool		Appelez-nous	-
7	316403901		Insulation,oven Door		Appelez-nous	-
8	316427701		Glass,oven Door ,inner ,(2)				$ 103.74
9	316423809		Liner,oven Door		Appelez-nous	-
10	316278700		Screw,10-14 X 1.365`` ,handle Mtg.   (Replaces: 316433301)			Immediately	$ 27.50
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 88.74
17	316408803		Spacer,door Glass ,(2)				$ 32.28
21	316284101		Spacer,door Handle ,(2)		Appelez-nous	-
23	316575901		Hinge,oven Door				$ 65.92
39	316545300		Handle,door/drawer ,black				$ 137.92
52	316575501		Cap,door Trim ,black				$ 110.73
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55

    View Diagram in Separate Window       Print Part List
