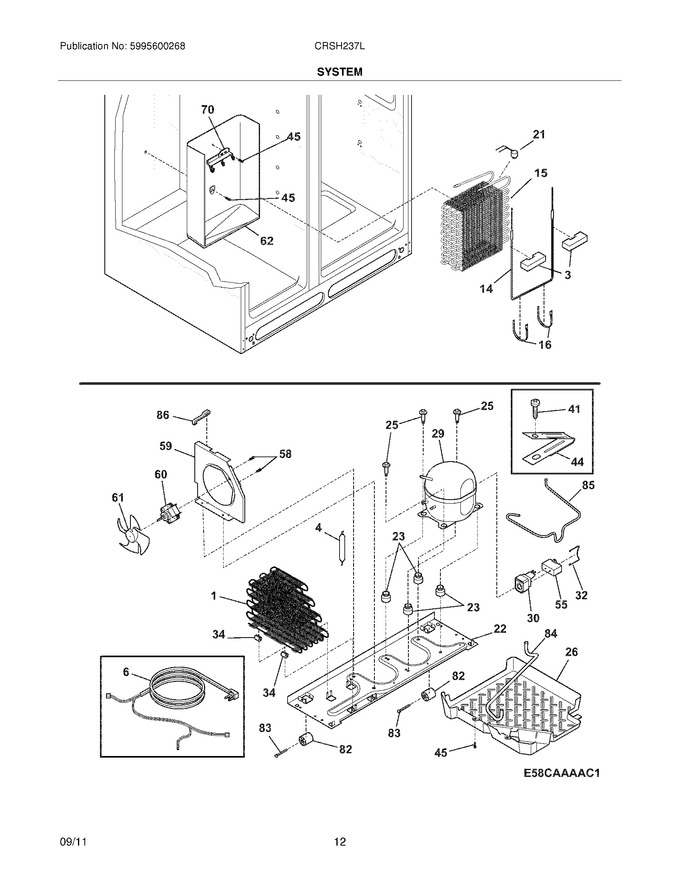

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242039201 | Condenser |
|
$ 109.88 | |||||
| 3 | 218679606 | Block-evap Coil,styrofoam ,(2) |
|
- | |||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 21 | 5303918214 | Thermostat-defrost,kit |
|
Immediately | $ 33.42 | ||||
| 22 | 240330010 | Base-compressor |
|
$ 163.01 | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 42.53 | |||||
| 25 | 240491503 | Screw-compressor Mtg,1/4-28 X 1.16 ,(4) |
|
$ 13.95 | |||||
| 26 | 241697603 | Pan-defrost (Replaces: 241697602) |
|
$ 79.22 | |||||
| 32 | 297030500 | Clamp,elec Cont Mtg ,compressor |
|
Immediately | $ 12.05 | ||||
| 34 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 | |||||
| 41 | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 44 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 55 | 297286803 | Capacitor-run |
|
Immediately | $ 28.77 | ||||
| 58 | 240569201 | Screw,8-18 X 0.500 |
|
- | |||||
| 59 | 241946106 | Shroud-cond Fan |
|
$ 45.36 | |||||
| 60 | 297279500 | Motor-condenser Fan (Replaces: 241584301) |
|
Immediately | $ 141.66 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 62 | 240429404 | Trough-drain |
|
- | |||||
| 70 | 218990801 | Bracket-evap/cvr Mtg |
|
$ 63.79 | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 241830905 | Tube-drain,lower (Replaces: 241830903) |
|
$ 19.85 | |||||
| 85 | 242145201 | Tube-connector,suction |
|
$ 52.50 | |||||
| 86 | 240409302 | Spacer-cond Tube,black |
|
$ 67.49 | |||||
| F14 | 242044113 | Heater-defrost |
|
Immediately | $ 103.72 | ||||
| F15 | 5303918286 | Evaporator Kit |
|
$ 354.85 | |||||
| F29 | 5304511982 | Compressor,w/o Electricals (Replaces: 5303918359) |
|
$ 492.32 | |||||
| F30 | 241707718 | Starter-ptc |
|
$ 71.59 | |||||
| F4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944001) |
|
Immediately | $ 31.67 | ||||
| F6 | 241586801 | Harness-wiring,machine Compt |
|
$ 177.08 | |||||
| FNI | 5303918328 | Heat Exchanger Kit,suction Line ,service |
|
$ 367.18 | |||||
| FNI | 241737801 | Harness-wiring,control Box |
|
$ 112.23 | |||||
| NI | 5303918222 | Hot Tube Repair Kit,service |
|
$ 418.12 | |||||
| NI | 240346701 | Tape-foam Seal,shroud |
|
$ 29.77 | |||||
| NI | 240359403 | Screw-fan Shroud,(2) |
|
$ 3.79 | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 |
