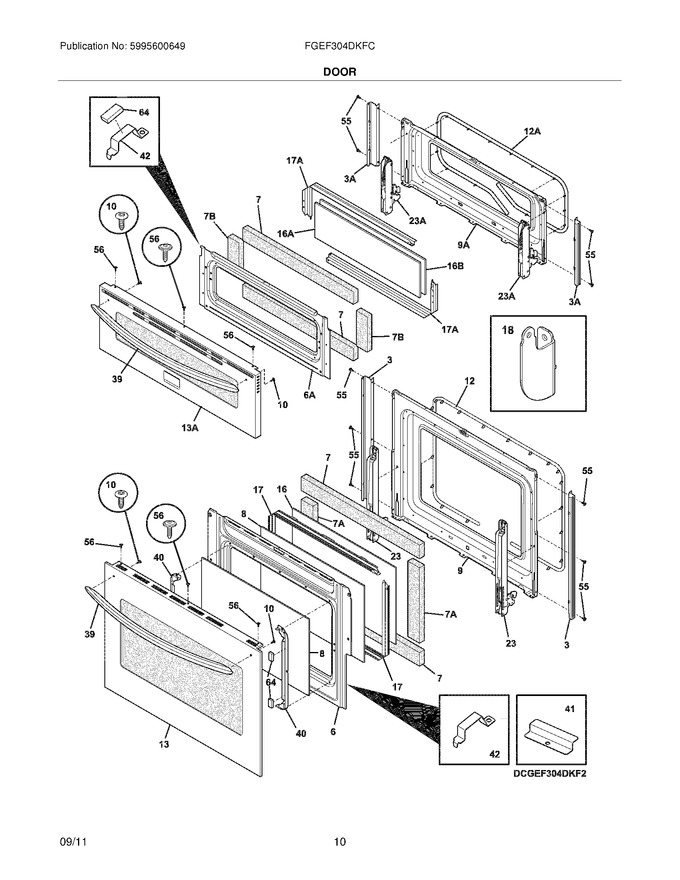

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301412		Trim,lower Door ,black				$ 32.71
6	318260527		Baffle,door ,lower		Appelez-nous	-
7	318372016		Insulation,24 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372002)				$ 17.72
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318411610		Liner,oven Door				$ 142.00
10	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
12	318053120		Seal,oven Door   (Replaces: 318053130)			Immediately	$ 159.62
13	318187997		Panel Assembly,door ,stainless ,outer				$ 292.58
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,(2)   (Replaces: 318264724)				$ 72.05
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
23	318567106		Hinge,lower ,oven Door ,(2)		Appelez-nous	-
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
55	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
64	318165800		Spacer				$ 17.72
12A	318053152		Seal,oven Door ,upper				$ 89.57
13A	318934301		Panel Assembly,upper Door ,stainless ,outer,w/badge				$ 269.06
16A	318212211		Glass,upper Oven ,heat Barrier ,hbi				$ 192.73
16B	318212212		Glass,upper Oven ,heat Barrier ,(2) ,hbii				$ 249.80
17A	318264720		Spacer,glass ,upper ,(2)		Appelez-nous	-
23A	318567132		Hinge,door ,upper Oven ,(2)				$ 77.75
3A	318301422		Trim,upper Door ,black		Appelez-nous	-
6A	318260526		Baffle,door ,upper		Appelez-nous	-
7A	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
7B	318372007		Insulation,6.625 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
9A	318259678		Liner,oven Door ,upper				$ 165.32
NI	316433603		Label,anti-tip				$ 3.55
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
