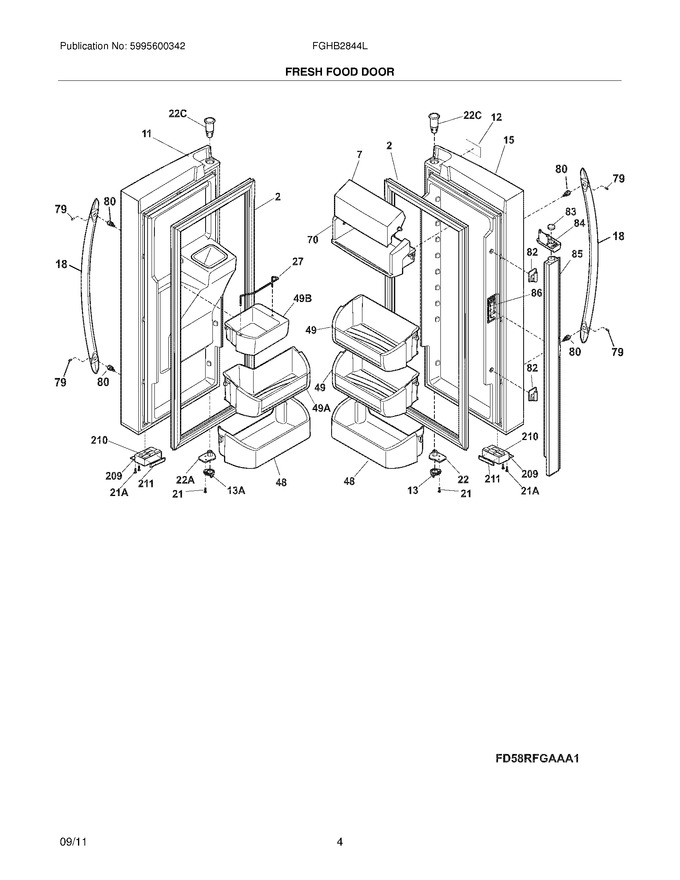

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 242011401 | Door-dairy,removable |
|
- | |||||
| 11 | 241988043 | Door-refr,black ,lh |
|
$ 332.50 | |||||
| 12 | 242015201 | Label-nameplate |
|
Immediately | $ 6.90 | ||||
| 13 | 241868401 | Door Stop,refrig Rh ,plated |
|
$ 18.43 | |||||
| 15 | 241988042 | Door-refr,black ,rh |
|
$ 340.62 | |||||
| 18 | 241930103 | Handle-door,black |
|
$ 213.98 | |||||
| 21 | 242017501 | Screw,10-32 X 0.750 |
|
$ 15.60 | |||||
| 22 | 242075601 | Cam,upper Hinge ,rh |
|
$ 23.31 | |||||
| 27 | 241752703 | Retainer,tall Bottle |
|
$ 55.36 | |||||
| 48 | 242071401 | Bin-door,pseudo ,white |
|
Immediately | $ 91.99 | ||||
| 49 | 242079701 | Bin-door,gallon (Replaces: 242011501) |
|
Immediately | $ 110.95 | ||||
| 70 | 241804604 | Compartment-dairy,removable |
|
- | |||||
| 79 | 218755405 | Screw-set,10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 241779401 | Hinge-mullion,upper/lower ,flipper |
|
Immediately | $ 21.99 | ||||
| 83 | 241812201 | Magnet,door |
|
$ 65.92 | |||||
| 84 | 5303918644 | Guide-mullion,magnet Cover ,flipper (Replaces: 241779702) |
|
$ 41.44 | |||||
| 85 | 241778808 | Flipper Mullion Assembly,w/heater |
|
Immediately | $ 315.40 | ||||
| 86 | 241779802 | Hinge-mullion,center ,flipper (Replaces: 241779801) |
|
Immediately | $ 36.73 | ||||
| 209 | 242291002 | Housing-magnet,black (Replaces: 242021002) |
|
$ 19.13 | |||||
| 210 | 241779101 | Magnet,door (Replaces: 241779103) |
|
Immediately | $ 31.19 | ||||
| 211 | 241979601 | Bumper,rubber |
|
$ 22.68 | |||||
| 13A | 241868402 | Door Stop,refr Lh ,plated |
|
$ 18.43 | |||||
| 21A | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 22A | 242075602 | Cam,upper Hinge ,lh |
|
$ 25.02 | |||||
| 22C | 241760401 | Bearing,hinge ,top |
|
Immediately | $ 19.13 | ||||
| 49A | 242071301 | Bin-door,2-liter |
|
Immediately | $ 102.40 | ||||
| 49B | 242011701 | Bin-door,dispenser |
|
$ 51.38 | |||||
| F2 | 241778315 | Gasket-refr Door, Grey, Magnetic (Replaces: 241778303) |
|
Immediately | $ 89.88 | ||||
| FNI | 5304520993 | Harness-wiring,flipper Mullion (Replaces: 241788401) |
|
Immediately | $ 41.97 | ||||
| FNI | 242040802 | Harness-wiring,door |
|
$ 103.74 | |||||
| FNI | 240451503 | Screw (Replaces: 242064001) |
|
$ 3.79 | |||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 242015001 | Screw,no.10 8-19 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NI | 241806601 | Connector-water,straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 242068601 | Bumper,rh Door |
|
$ 14.41 | |||||
| NI | 241701902 | Screwdriver-3/32`` Balldriver |
|
$ 19.85 | |||||
| NI | 241601001 | Wrench,allen |
|
- |
