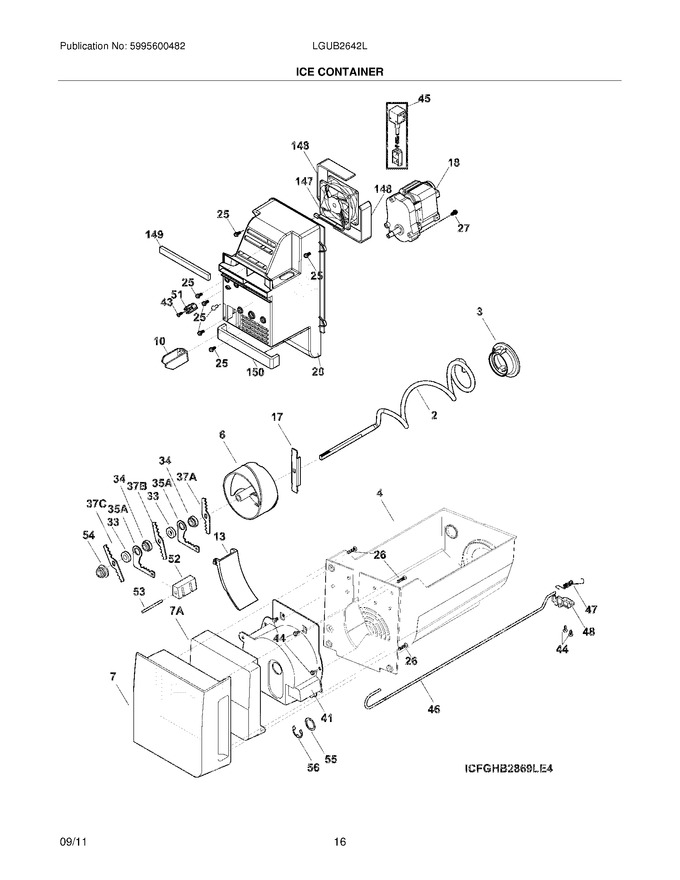

15 - Ice Container


17 - Fresh Food Ice Maker


19 - Freezer Ice Maker


20 - Wiring Diagram


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241829401		Auger-ice				$ 265.78
3	241830201		Cam-drive				$ 36.02
4	242093101		Container-ice,bucket Only				$ 116.03
6	241829801		Drum-ice Disp				$ 114.83
7	242093201		Cover-bucket Front				$ 44.99
10	241829001		Bar-drive				$ 58.55
13	242106201		Gate		Appelez-nous	-
17	241830601		Drive Blade				$ 69.88
20	242095702		Housing-air Handler, Gen Ii Im   (Replaces: 242095701)				$ 90.01
25	240555002		Screw,8-32 X 3/8 ,black   (Replaces: 240555004)			Immediately	$ 13.46
26	242015001		Screw,no.10 8-19 X 1/2			Immediately	$ 16.30
27	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
33	241684802		Spacer   (Replaces: 241684801)				$ 9.10
34	241689802		Spacer   (Replaces: 241689801)				$ 8.34
41	242093301		Housing-crusher				$ 79.62
43	241641502		Screw				$ 8.51
44	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
46	241817901		Control Rod				$ 111.46
47	241839002		Spring-control Rod		Appelez-nous	-
48	241830101		Bracket-control				$ 14.18
51	242095501		Pin-anti Twist Bkt Gen Ii Im			Immediately	$ 20.56
52	241830701		Spacer-fixed Blades				$ 12.18
53	241869601		Pin-spiral,fixed Blades				$ 9.93
54	241829601		Nut-auger				$ 18.95
55	241690306		Washer				$ 49.62
56	241690201		E-ring				$ 19.13
148	242095406		Gasket			Immediately	$ 18.17
149	5303918784		Gasket-evap Housing,.250x.250x5.250   (Replaces: 242095404)			Immediately	$ 122.75
150	5303918784		Gasket   (Replaces: 242095407)			Immediately	$ 122.75
35A	241830401		Fixed Blade,round				$ 50.99
37A	241830301		Blade,crusher No.1				$ 64.00
37B	241830302		Blade,crusher No.2				$ 58.70
37C	241830303		Blade,crusher No.3				$ 52.83
7A	242095201		Insulation,i/container Frt				$ 17.77
F147	5304493604		Fan Assembly,motor ,with Blade   (Replaces: 242119401)			Immediately	$ 90.55
F18	241816602		Motor-auger   (Replaces: 241816601)			Immediately	$ 154.76
F45	241675704		Solenoid Assy,115v   (Replaces: 241675701)			Immediately	$ 65.71
FNI	242095802		Harness-wiring,air Handler		Appelez-nous	-
NI	242093003		Ice Container Assy,w/moving Parts   (Replaces: 242093001)				$ 241.69
