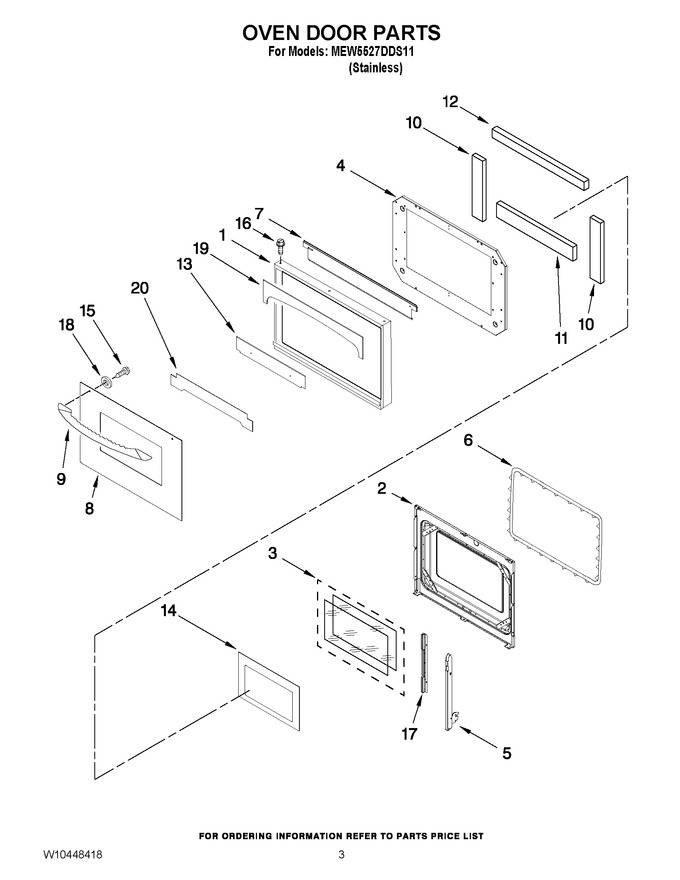

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7706P561-60		Assembly, Door Frame Trim				$ 64.41
2	2402W264-19		Liner, Oven Door		Appelez-nous	-
3	7902P660-60		Glass, Door				$ 122.62
4	3804F200-51		Retainer, Insulation		Appelez-nous	-
5	WP74008014		Hinge, Door   (Replaces: 7106P115-60)			Immediately	$ 129.55
6	WP71001970		Seal, Door   (Replaces: 7212P060-60)				$ 156.50
7	W10205610		Bracket, Handle				$ 31.83
8	W10194892		Glass, Door				$ 164.70
9	7701P525-60		Handle, Door				$ 161.34
10	7002P380-60		Insulation, Door		Appelez-nous	-
11	7002P381-60		Insulation, Bottom		Appelez-nous	-
12	7002P382-60		Insulation, Top		Appelez-nous	-
13	3604F369-45		Shield, Heat				$ 50.19
14	7902P712-60		Glass, Door Inner		Appelez-nous	-
15	WP74006515		Screw   (Replaces: 7101P681-60)				$ 7.29
16	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.47
17	3804F144-45		Retainer, Glass		Appelez-nous	-
18	74008302		Washer, Fiber   (Replaces: 7109P083-60)				$ 6.58
19	7002P385-60		Shield, Heat		Appelez-nous	-
20	7002P387-60		Insulation, Handle		Appelez-nous	-
