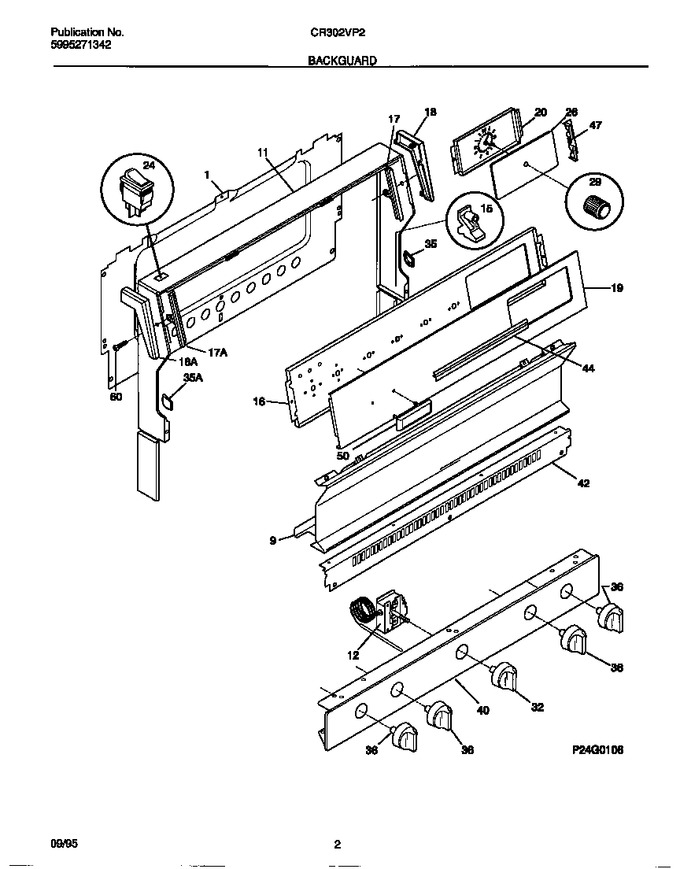

1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043501		Trim-splasher,white		Appelez-nous	-
11	316083712		Trim-wrapper		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
17	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18	5303272308		End Cap,black ,rh		Appelez-nous	-
18	5303272307		End Cap,black ,lh		Appelez-nous	-
19	316034508		Panel-control, Metal		Appelez-nous	-
20	316043702		Clock/timer, T.o.d. 1 Stem, 220 V, 50 Hz		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
26	5303208985		Lens-clock, Glass		Appelez-nous	-
29	316029000		Knob-clock		Appelez-nous	-
32	5303296842		Knob-thermostat		Appelez-nous	-
35	3203077		End Cap,rh		Appelez-nous	-
35	3203076		End Cap,lh		Appelez-nous	-
36	5303288187		Knob-top Valve, (4)		Appelez-nous	-
40	319009214		Panel-manifold		Appelez-nous	-
42	316084300		Trim-vent		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
47	3201700		Retainer, Clock Glass, (2)		Appelez-nous	-
50	316052100		Bezel-nameplate		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*40840	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*40841	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
12A	5303935014		Thermostat,oven ,w/screws		Appelez-nous	-
12B	5303280590		Screw-thermostat, (2) (not Illustrated)		Appelez-nous	-
