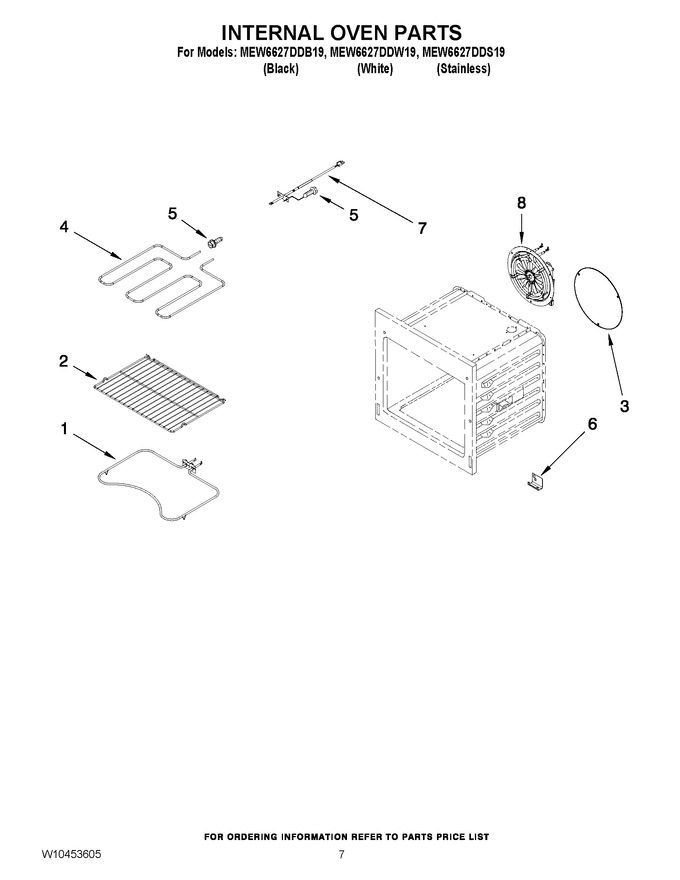

04 - Internal Oven Parts
05 - Control Panel And Internal Controls
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7406P272-60 | Element, Bake (Replaces: W10314692) |
|
$ 158.68 | |||||
| 2 | 7801P156-60 | Rack, Straight |
|
- | |||||
| 2 | W10275562 | Rack, Oven Offset |
|
$ 65.15 | |||||
| 3 | 3605F211-19 | Plate, Non-convect |
|
- | |||||
| 4 | W10310260 | Element, Broil |
|
$ 90.33 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 6 | 7112P126-60 | Clip, Oven |
|
- | |||||
| 7 | 12001656 | Sensor, Oven (Replaces: 7430P042-60) |
|
Immediately | $ 39.55 | ||||
| 8 | W10210594 | Upper Oven Assembly, Convection |
|
$ 238.92 |
