SELECT A DIAGRAM

01 - Oven Parts


02 - Upper Oven Door Parts


03 - Lower Oven Door Parts


04 - Internal Oven Parts

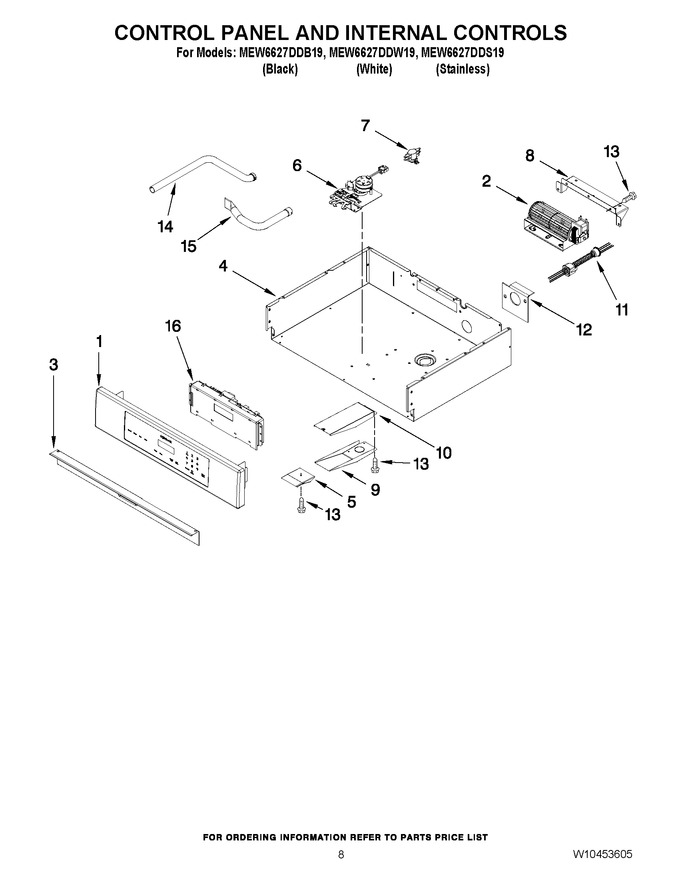

05 - Control Panel And Internal Controls


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5765M451-60		Assembly, Control Panel (white)   (Replaces: 5765M486-60)				$ 430.05
1	5765M445-60		Assembly, Control Panel (stainless)				$ 373.04
1	5765M481-60		Assembly, Control Panel (black)				$ 420.91
2	W10315816		Assembly, Fan Motor		Appelez-nous	-
3	3608F104-70		Trim, Control Panel		Appelez-nous	-
4	W10368641		Panel, Top		Appelez-nous	-
5	8312P232-60		Extension, Vent		Appelez-nous	-
6	WPW10186996		Switch, Door Lock   (Replaces: W10186996)			Immediately	$ 330.95
7	7403P855-60		Thermostat, Hi-limit (lower)				$ 61.45
7	74008265		Thermostat, Hi-limit (upper)   (Replaces: 7403P856-60)				$ 175.16
8	3801F936-51		Bracket, Cooling Fan		Appelez-nous	-
9	4011F438-45		Vent, Top				$ 40.41
10	4006F169-45		Vent, Bottom				$ 27.52
11	5700P821-60		Assembly, Wire Cable		Appelez-nous	-
12	8020P048-60		Bracket, Cable		Appelez-nous	-
13	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
14	7506P404-60		Tube, Vent Lower		Appelez-nous	-
15	7506P405-60		Tube, Vent Upper		Appelez-nous	-
16	WP8507P322-60		Control   (Replaces: 8507P322-60)				$ 397.04

    View Diagram in Separate Window       Print Part List
