01 - Cooktop Parts

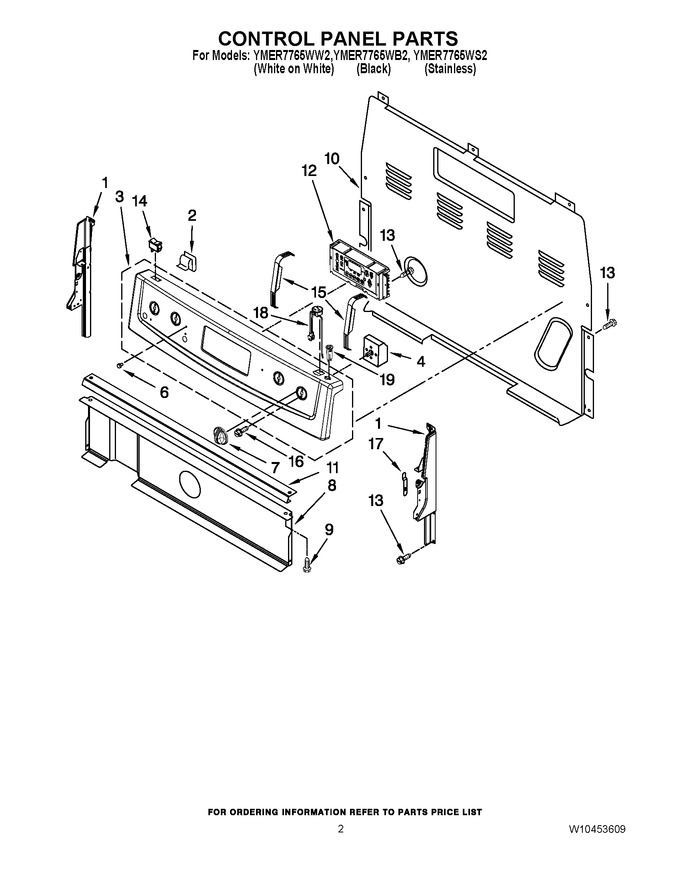

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 36.39 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 52.14 | |||||
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 2 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 10.85 | |||||
| 3 | W10292028 | Panel, Control (stainless) |
|
$ 156.60 | |||||
| 3 | W10292027 | Panel, Control (black) |
|
$ 93.05 | |||||
| 3 | W10292026 | Panel, Control (white) |
|
$ 105.45 | |||||
| 4 | WP3149404 | Switch, Infinite (lf,rf) (Replaces: W10295576) |
|
Immediately | $ 55.31 | ||||
| 4 | WPW10434452 | Switch, Infinite (lr,rr) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W11193834 | Knob, Infinite (black) (Replaces: W10211372) |
|
$ 76.27 | |||||
| 7 | WPW10211371 | Knob, Infinite (white) (Replaces: W10211371) |
|
Immediately | $ 18.20 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 9 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 9 | 3196166 | Screw (white) |
|
$ 6.31 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W10525121 | Brkt-mntg,console (Replaces: W10182322) |
|
$ 84.73 | |||||
| 12 | WPW10476387 | Control, Range (white) (Replaces: W10271764) |
|
$ 390.51 | |||||
| 12 | WPW10476387 | Control, Range (black) (Replaces: W10271765) |
|
$ 390.51 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 14 | 3149360 | Switch-rocker (white) |
|
$ 89.01 | |||||
| 14 | WP4314961 | Switch-rocker (black) (Replaces: 3148564) |
|
$ 80.53 | |||||
| 15 | W11230932 | Brkt, Mntg Eoc (Replaces: W10138683) |
|
Immediately | $ 72.69 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 17 | 3196200 | Clip, Spring |
|
$ 8.96 | |||||
| 18 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 | ||||
| 18 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 72.71 | ||||
| 19 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 48.43 | ||||
| 19 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 |
