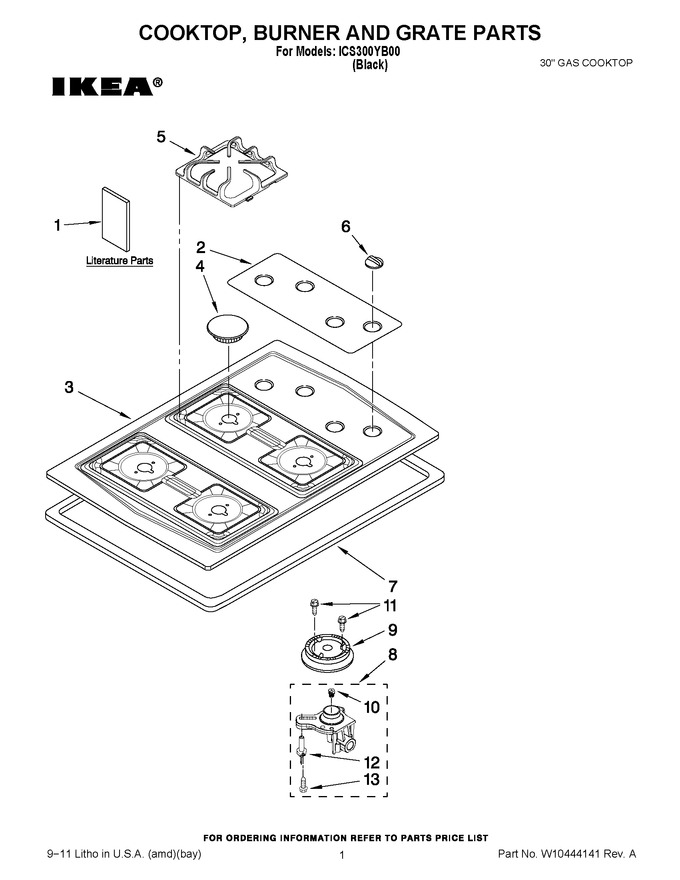

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3192098		Wiring Diagram		Appelez-nous	-
1	W10131955		Installation Instructions		Appelez-nous	-
1	8304572		Installation Instructions, Undercounter		Appelez-nous	-
1	W10254048		Owners Manual		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
1	9759440		L.p. Conversion Instructions		Appelez-nous	-
2	W10431382		Panel, Control		Appelez-nous	-
3	WP3191242		Cooktop   (Replaces: 3191242)				$ 270.94
4	WP3191898		Cap, Burner (6k (1))   (Replaces: 3191898)				$ 60.86
4	WP3191904		Cap, Burner (12.5k (1))   (Replaces: 3191904)				$ 157.85
4	WP3191901		Cap, Burner (9.5k (2))   (Replaces: 3191901)				$ 106.83
5	9761231		Grate				$ 78.62
6	W10163494		Knob, Control				$ 16.02
7	9760045		Seal, Foam				$ 236.42
8	WPW10155785		Holder, Orifice (rapid)   (Replaces: W10155785)				$ 102.43
8	WPW10155784		Holder, Orifice (semi Rapid)   (Replaces: W10155784)			Immediately	$ 98.35
8	WPW10128448		Holder, Orifice (auxi)   (Replaces: W10128448)			Immediately	$ 100.54
9	WP4455981		Head, Burner (lf)   (Replaces: 4455981)			Immediately	$ 78.77
9	9760037		Head, Burner (lr, Rr)				$ 95.05
9	4455979		Head, Burner (rf)				$ 28.52
10	WP3192529		Orifice (auxi)   (Replaces: 3192529)				$ 86.35
10	WP9753930		Orifice (rapid)   (Replaces: 3192524)				$ 80.19
10	WP3192523		Orifice (semi Rapid)   (Replaces: 3192523)				$ 80.19
11	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
12	WP9782116		Electrode   (Replaces: 9782116)			Immediately	$ 49.45
13	WP8273062		Screw, Spark Electrode   (Replaces: 8273062)			Immediately	$ 7.12
NI	4456626		Harness, Wire Ignitor 15``				$ 66.34
NI	W10268394		Harness, Wire Ignitor (28``)				$ 26.60
