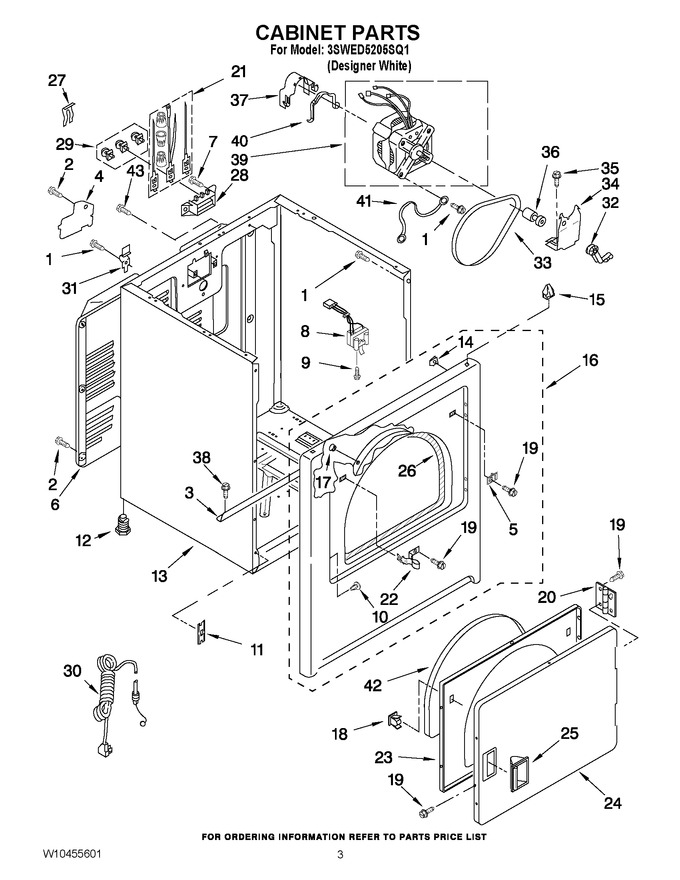

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 2 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 3 | W10236073 | Bracket, Cabinet |
|
- | |||||
| 4 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 5 | WP3403630 | Plug, Strike Hole (Replaces: 3403630) |
|
$ 7.91 | |||||
| 6 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 358.37 | |||||
| 7 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.61 | ||||
| 8 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 65.77 | ||||
| 9 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 8.57 | |||||
| 10 | WP3404413 | Plug, Hinge Hole (Replaces: 3404413) |
|
Immediately | $ 8.35 | ||||
| 11 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 12 | 49621 | Foot (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 13 | 8533643 | Cabinet (includes Illus. 4) (Replaces: 8530603) |
|
$ 419.22 | |||||
| 14 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 15 | WP18776 | Lock, Front Top (Replaces: 690363) |
|
Immediately | $ 13.31 | ||||
| 16 | W10806345 | Front Panel Assembly (Replaces: W10224853) |
|
$ 244.38 | |||||
| 17 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 18 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
Immediately | $ 7.64 | ||||
| 19 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 8.11 | |||||
| 20 | WPW10362431 | Hinge & Pin Assembly (Replaces: W10362431) |
|
Immediately | $ 8.28 | ||||
| 21 | 279318 | Terminal, Tinned & Brass (includes Illus. 42) |
|
Immediately | $ 106.04 | ||||
| 22 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 22.03 | ||||
| 23 | WP3402341 | Door, Rear (Replaces: 3402341) |
|
$ 208.71 | |||||
| 24 | W10861227 | Door, Front (Replaces: 3402335) |
|
$ 269.26 | |||||
| 25 | WP3405184 | Handle, Door (Replaces: 3405184) |
|
$ 79.81 | |||||
| 26 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 97.31 | ||||
| 27 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 28 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 29 | 279393 | Terminal Block Kit (for Terminal Block ) |
|
Immediately | $ 55.66 | ||||
| 30 | W10109720 | Cord, Power |
|
- | |||||
| 31 | WP8066217 | Hinge, Top (Replaces: 8066217) |
|
$ 8.21 | |||||
| 32 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.50 | ||||
| 33 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 18.15 | ||||
| 34 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 35 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 14.04 | ||||
| 36 | W11618508 | Pulley, 50 Hz. (Replaces: 685064) |
|
$ 365.52 | |||||
| 37 | WP3404162 | Clamp, Motor (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 38 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 8.25 | |||||
| 39 | W11618508 | Motor Assembly, 50/60 Hz. (Replaces: W10289660) |
|
$ 365.52 | |||||
| 40 | WPW10121316 | Clip, Motor (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 41 | 690236 | Wire, Ground |
|
- | |||||
| 42 | W10861521 | Seal, Door (Replaces: 3405246) |
|
Immediately | $ 71.23 | ||||
| 43 | W10850756 | Screw, 10-32 X 1/2 (Replaces: 8533974) |
|
$ 8.20 |
