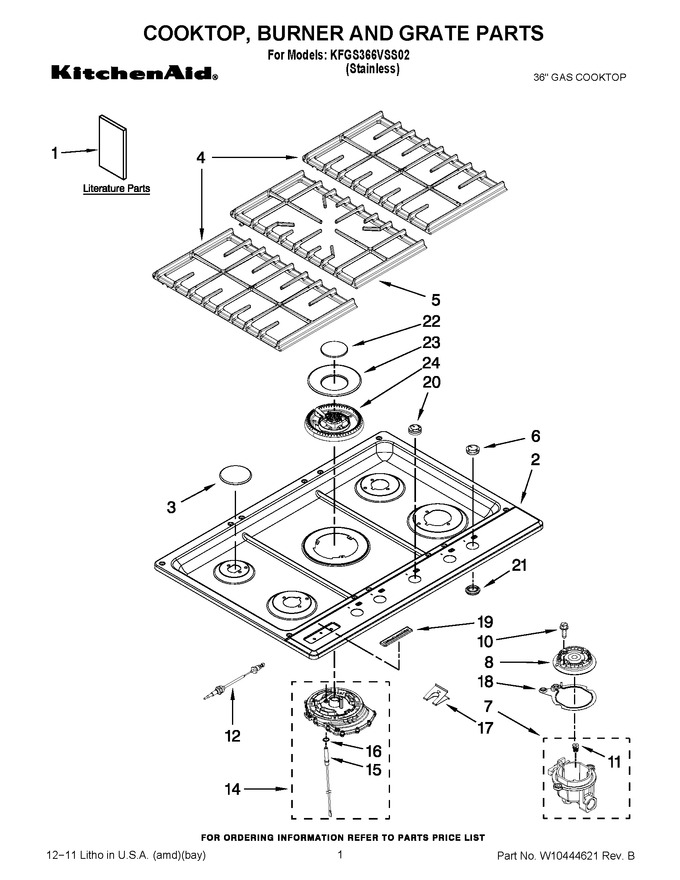

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 8304571 | Undercounter, Installation |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10411933 | Use & Care Guide |
|
- | |||||
| 1 | W10411931 | Lp Conversion Instructions |
|
- | |||||
| 1 | W10411932 | Installation Instructions |
|
- | |||||
| 2 | W10397739 | Cooktop |
|
$ 212.87 | |||||
| 3 | WP8286817 | Cap, Burner (rr,lf) (Replaces: 8286817) |
|
$ 100.88 | |||||
| 3 | WP8286816 | Cap, Burner (lr) (Replaces: 8286816) |
|
$ 94.92 | |||||
| 3 | WP8286818 | Cap, Burner (rf) (Replaces: 8286818) |
|
$ 100.97 | |||||
| 4 | WP8287314 | Grate, Burner (left) (Replaces: 8287314) |
|
$ 195.66 | |||||
| 4 | 8286662 | Grate, Burner (right) |
|
$ 95.67 | |||||
| 5 | 8287049 | Grate, Center |
|
$ 95.84 | |||||
| 6 | WPW10132192 | Knob, Control (Replaces: W10132192) |
|
$ 53.82 | |||||
| 7 | W10140570 | Holder, Orifice (rf,lf) |
|
$ 69.44 | |||||
| 7 | 8286820 | Holder, Orifice (lr) |
|
$ 68.99 | |||||
| 7 | W10140569 | Holder, Orifice (rr) |
|
$ 69.13 | |||||
| 7 | 8286819 | Holder, Orifice (ctr) |
|
$ 124.66 | |||||
| 8 | WP8286813 | Head, Burner (lr) (Replaces: 8286813) |
|
$ 85.50 | |||||
| 8 | WP8286815 | Head, Burner (rf) (Replaces: 8286815) |
|
Immediately | $ 66.94 | ||||
| 8 | WP8286814 | Head, Burner (rr,lf) (Replaces: 8286814) |
|
$ 106.79 | |||||
| 10 | WP8287059 | Screw (Replaces: 8287059) |
|
Immediately | $ 7.02 | ||||
| 11 | W10791614 | Orifice (lr) (Replaces: W10151348) |
|
$ 85.86 | |||||
| 11 | W10791072 | Orifice (rf,lf) (Replaces: W10151349) |
|
$ 85.86 | |||||
| 11 | W10151350 | Orifice (rr) |
|
$ 72.95 | |||||
| 12 | WPW10560001 | Electrode Wiring (lf) (Replaces: 8286722) |
|
$ 71.52 | |||||
| 12 | W10854967 | Electrode Wiring (rr) (Replaces: 8286725) |
|
Immediately | $ 41.37 | ||||
| 12 | 8286724 | Electrode Wiring (rf) |
|
$ 30.12 | |||||
| 12 | 8286723 | Electrode Wiring (lr) |
|
$ 69.68 | |||||
| 14 | WPW10639175 | Assembly, Burner Base (Replaces: W10409114) |
|
Immediately | $ 248.90 | ||||
| 15 | WPW10398577 | Electrode, Burner (Replaces: W10398577) |
|
$ 127.04 | |||||
| 16 | W10416057 | Oring |
|
$ 66.97 | |||||
| 17 | 8286863 | Clip, Electrode |
|
$ 65.93 | |||||
| 18 | 8286930 | Gasket, Orifice (lr) |
|
$ 82.05 | |||||
| 18 | 8286931 | Gasket, Orifice (rr,lf) |
|
$ 53.77 | |||||
| 18 | 8286932 | Gasket, Orifice (rf) |
|
$ 82.11 | |||||
| 19 | WPW10243391 | Badge (Replaces: W10243391) |
|
$ 49.98 | |||||
| 20 | W10132191 | Knob, Special Burner |
|
$ 53.42 | |||||
| 21 | W10132183 | Knob, Grommet |
|
$ 5.65 | |||||
| 22 | WPW10398575 | Burner, Inner Cap (Replaces: W10398575) |
|
$ 26.76 | |||||
| 23 | W10846732 | Burner, Outer Cap (Replaces: W10398574) |
|
$ 89.24 | |||||
| 24 | W10836409 | Burner Spreader (Replaces: W10398571) |
|
Immediately | $ 115.45 |
