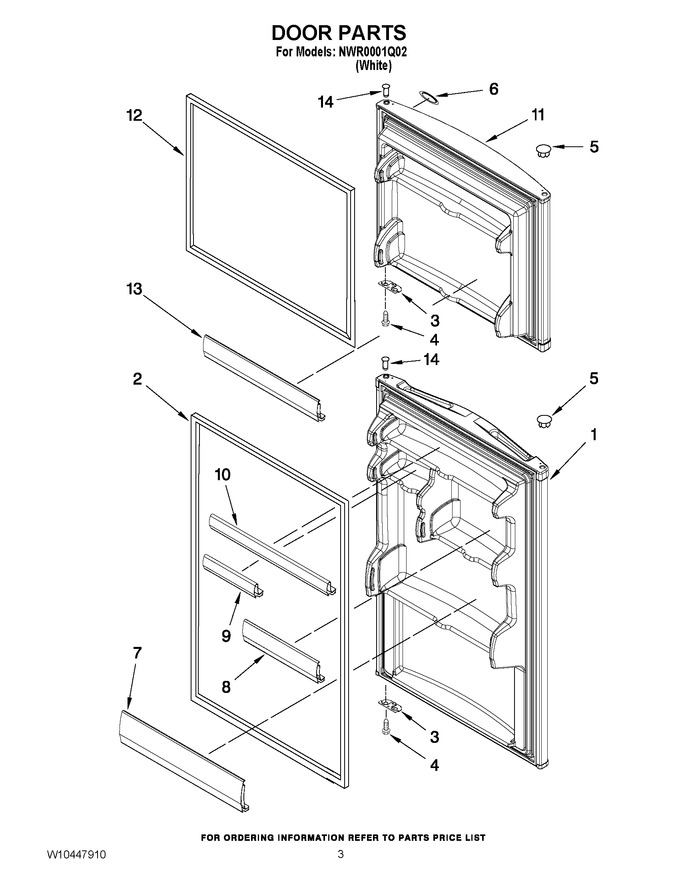

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10163943 | Refrigerator Door (includes Illus. 2,3,4 5 & 14) (white) |
|
- | |||||
| 2 | W10190029 | Gasket, Door (rc) |
|
$ 151.37 | |||||
| 3 | 2211124 | Bracket, Door Stop |
|
- | |||||
| 4 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 5 | 2211250W | Hole Plug (4) |
|
- | |||||
| 6 | WP2213265 | Nameplate (Replaces: 2262180) |
|
Immediately | $ 79.87 | ||||
| 7 | W10304909 | Trim, Door Shelf (bottom) |
|
$ 33.50 | |||||
| 8 | W10309342 | Trim, Door Shelf (middle-right) |
|
- | |||||
| 9 | WPW10160952 | Trim, Door Shelf (middle-left) (Replaces: 2219149) |
|
$ 69.87 | |||||
| 10 | 2219148 | Trim, Door Shelf (top) |
|
$ 65.30 | |||||
| 11 | W10163942 | Freezer Door (includes Illus. 3,4,5 12 & 15) (white) |
|
- | |||||
| 12 | W10190030 | Gasket, Door (fc) |
|
$ 121.04 | |||||
| 13 | 2219150 | Trim, Door Shelf |
|
$ 142.57 | |||||
| 14 | 2210973 | Thimble |
|
- |
