Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 318259220 Back,main Special Order $ 88.31

2 318258960 Shield,insulation ,upper Special Order $ 63.74

3 318299851 Panel,body Side ,white ,(2) Appelez-nous -
4 318364111 Liner,oven Bottom Special Order $ 98.06

5 318175510 Screw-leveling   (Replaces: 318175503) In-Stock Immediately $ 24.26

5 318175510 Screw,leveling ,w/tee Nut   (Replaces: 318175508) In-Stock Immediately $ 24.26

6 318922304 Rack,oven Special Order $ 147.53

7 318297303 Box,bake Element Special Order $ 125.84

8 318359500 Panel,service Special Order $ 140.09

9 316081900 Pan,broiler Special Order $ 65.89

10 316082000 Insert-broiler Pan Special Order $ 68.85

11 318603810 Ladder,oven Rack ,(2) Appelez-nous -
12 316445501 Switch,oven Light ,door Frame Special Order $ 90.01

13 318603915 Bracket,ladder Mtg. ,(4) Appelez-nous -
14 316116400 Receptacle,oven Light   (Replaces: 318224000) In-Stock Immediately $ 56.10

16 5304524341 Lens,oven Light ,glass   (Replaces: 318406100) In-Stock Immediately $ 14.18

17 5304400195 Retainer,light Cover Appelez-nous -
18 318222400 Housing,oven Light Special Order $ 58.22

19 318927600 Support,auto Rack ,(2) Special Order $ 23.25

20 318389400 Plate,retainer Special Order $ 16.21

21 318389000 Seal,ring Special Order $ 22.75

22 318368300 Pin,locking ,(2) Special Order $ 9.93

23 318361801 Bracket,element ,(2) Appelez-nous -
29 316517600 Spacer,oven Door Special Order $ 12.05

35 318406500 Shield,box Appelez-nous -
38 318361610 Panel,service Special Order $ 89.82

39 318330501 Insulation,service Panel ,12.47 X 14.77 Special Order $ 35.32

54 318535405 Bracket,side ,(4) Special Order $ 42.32

56 318362152 Insulation,bottom ,upper Oven Appelez-nous -
57 318402800 Plate,cover Special Order $ 9.23

59 318072577 Duct,oven Vent Special Order $ 16.30

62 5303935061 Terminal Block Kit Appelez-nous -
64 318561801 Bracket,terminal Block Appelez-nous -
68 5304403015 Support,hanger ,broil Element Special Order $ 35.04

70 318565000 Bracket,bottom ,rear Appelez-nous -
71 318405404 Panel,rear ,lower Appelez-nous -
74 318141910 Bumper,bodyside ,(4) Special Order $ 3.68

76 318056292 Front,oven Special Order $ 131.67

77 318293702 Spacer,control Special Order $ 16.22

80 5303320846 Plate,oven Mtg Special Order $ 51.50

81 318192400 Spring,oven Special Order $ 312.53

82 318258779 Shield,insulation ,lower ,large Oven Appelez-nous -
83 318261734 Liner,oven Special Order $ 207.11

84 318364338 Liner,oven Side ,rh Appelez-nous -
85 318364425 Liner,oven Back Appelez-nous -
86 318561100 Receptacle,hinge ,(2) Special Order $ 21.23

87 318405500 Bracket,cable Mtg. Appelez-nous -
88 318250207 Rod,latch ,w/bushing Special Order $ 62.95

90 318405203 Trim,bottom ,black   (Replaces: 318405201) Special Order $ 56.70

98 5304401490 Screw,6-18 X 1 ,(2) Appelez-nous -
99 318252804 Support,side Appelez-nous -
107 318219405 Cover,fan Special Order $ 82.69

109 318398302 Fan Blade In-Stock Immediately $ 29.11

111 316136600 Nut,fan Retainer In-Stock Immediately $ 19.13

127 318357001 Adapter Assembly,w/vent Tube ,and Catalyst Special Order $ 50.66

133 318347800 Chimney Appelez-nous -
142 318123910 Deflector Appelez-nous -
143 318172904 Support,wire Appelez-nous -
152 318338520 Bracket,lateral Panel ,(2) Special Order $ 18.38

170 5304469772 Anti Tip Kit,assembly Appelez-nous -
191 318322801 Angle,rear Plenum ,(2) Appelez-nous -
264 318257829 Trim,oven ,black ,front Appelez-nous -
272 318249409 Tube,protector Appelez-nous -
1A 318259261 Back,main ,upper Oven Appelez-nous -
35A 318535000 Shield,vent Tube Appelez-nous -
4A 318407200 Bracket,support ,lower Panel Appelez-nous -
56A 318362132 Insulation,wrapper ,upper Oven Appelez-nous -
56B 318362142 Insulation,rear ,upper Oven Appelez-nous -
56C 318641700 Insulation,upper Appelez-nous -
57A 318407100 Panel,access Appelez-nous -
58A 318362133 Insulation,top & Sides Appelez-nous -
58B 318285079 Insulation,oven Back Appelez-nous -
58C 318294912 Insullation,bake Element Special Order $ 97.17

58D 318372001 Insulation,20.5 X 2.375 ,1`` Thick ,(2) Appelez-nous -
59A 318408203 Vent Tube,oven ,upper Appelez-nous -
6A 318926802 Rack,half ,oven Special Order $ 139.44

6B 318601905 Rack,oven Special Order $ 254.78

6C 318929702 Insert,half Rack Special Order $ 100.46

6D 318921601 Rack,oven ,auto Special Order $ 161.81

76A 318056263 Front,upper Oven Special Order $ 96.02

77A 316114100 Spacer Special Order $ 60.96

81A 318373700 Bracket,oven ,(2) Appelez-nous -
82A 318258780 Shield,insulation ,lower ,small Oven Appelez-nous -
83A 318364211 Liner,oven Top Special Order $ 103.45

84A 318364339 Liner,oven Side ,lh Appelez-nous -
87A 318111806 Plate,cord Set Mtg Special Order $ 11.68

8A 318313601 Bracket,bake Element Special Order $ 71.45

99A 318256210 Bracket,side ,bottom ,(2) Appelez-nous -
F108 318251300 Bracket,fan Support Special Order $ 54.60

F108 318073028 Motor,blower In-Stock Immediately $ 271.69

F119 318004902 Switch,thermal In-Stock Immediately $ 71.44

F125 5304463302 Motor,fan   (Replaces: 318398201) In-Stock Immediately $ 259.95

F161 318255501 Element,convection ,350 W Special Order $ 109.04

F37 5304504897 Sensor,oven Temp Probe   (Replaces: 318562500) In-Stock Immediately $ 48.13

F59B 318408401 Catalyst Assy,vent Tube Appelez-nous -
F66 318255801 Element,broil ,3400w Special Order $ 99.39

F66A 318255857 Element,broil ,upper Oven ,3000w Appelez-nous -
F67 318254916 Element,bake ,2500w   (Replaces: 318254915) In-Stock Immediately $ 204.47

F67A 318601604 Element,hidden Bake ,upper Oven   (Replaces: 318601601) In-Stock Immediately $ 260.38

F76A 318373811 Bracket,front Frame ,(2) Appelez-nous -
F89 318261226 Motor,latch Assy Special Order $ 153.41

F89A 318095967 Motor,latch Assy ,w/brkt & Switch Special Order $ 238.62

F97 316442112 Board,power ,relay In-Stock Immediately $ 328.64

F97B 316443931 Board,relay Special Order $ 368.55

FNI 318231870 Wiring Harness,bake Element Special Order $ 83.42

FNI 318532135 Harness,wiring ,latch ,no Bas Appelez-nous -
FNI 318370378 Wiring Harness,door Switch ,and Latch Mtr Special Order $ 52.24

NI 5304461333 Screw,10-32 X 17/32 In-Stock Immediately $ 13.46

NI 316205500 Nut-10-32   (Replaces: 5303323144) Special Order $ 11.34

NI 318167300 Clip,rod Special Order $ 2.84

NI 5303311164 Spring Special Order $ 18.95

NI 5304436864 Washer,flat Special Order $ 2.84

NI 318346050 Insulation,motor ,door Lock Appelez-nous -
NI 5303323139 Screw,10-24 X 0.906 Special Order $ 13.46

NI 5303300414 Spacer, Cork & Rubber Special Order $ 13.18

NI 318165800 Spacer Special Order $ 17.72

NI 5303323136 Screw-ground Appelez-nous -
NI 318264200 Plate,grounding Strap Special Order $ 23.51

NI 318368501 Seal,housing ,flat Washer Appelez-nous -
NI 5304456367 Rivet,ladder Bracket ,(8) Special Order $ 13.99

NI 316519700 Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881) Special Order $ 10.02

NI 5303323129 Screw,8 X 0.750 Appelez-nous -
NI 318532193 Harness,wiring ,main Appelez-nous -
NI 318235301 Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300) Special Order $ 29.06

NI 134178901 Screw,8-18 X 0.500   (Replaces: 5303211311) Special Order $ 14.89

NI 5303288566 Screw,8 X 1/4 ,(4)   (Replaces: 5303323130) Special Order $ 2.12

NI 5303323277 Screw (8-18x13/32) Special Order $ 8.66

NI 5303325980 Screw,10-32 X 0.437 Special Order $ 12.76

NI 5304415832 Screw,8-18 X 0.406 Appelez-nous -
NI 5304436875 Screw,8-18 X 1/2 ,black ,(3) Special Order $ 14.41


    View Diagram in Separate Window     Print Icon   Print Part List

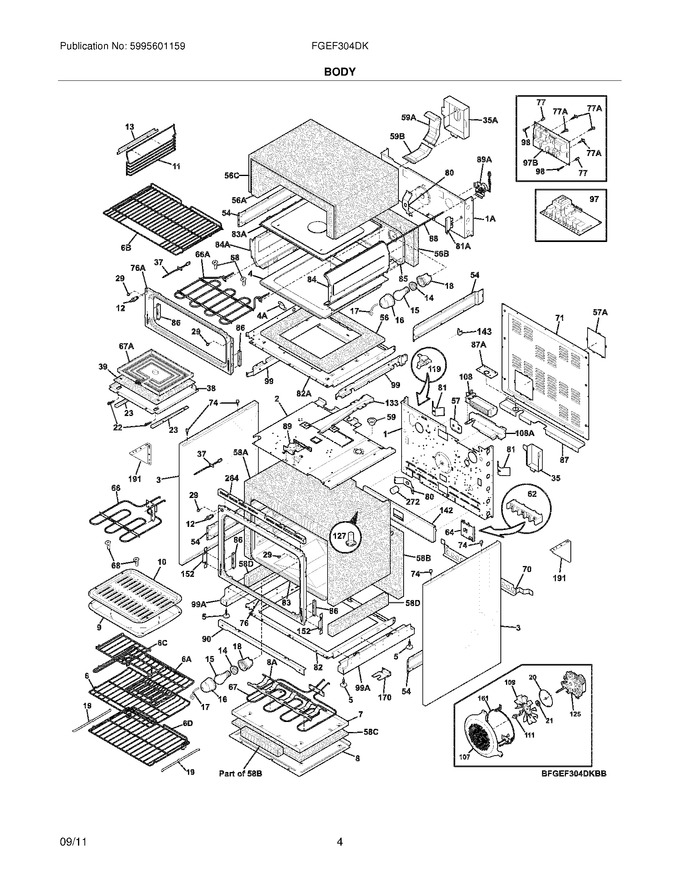

Diagram for FGEF304DKWC
