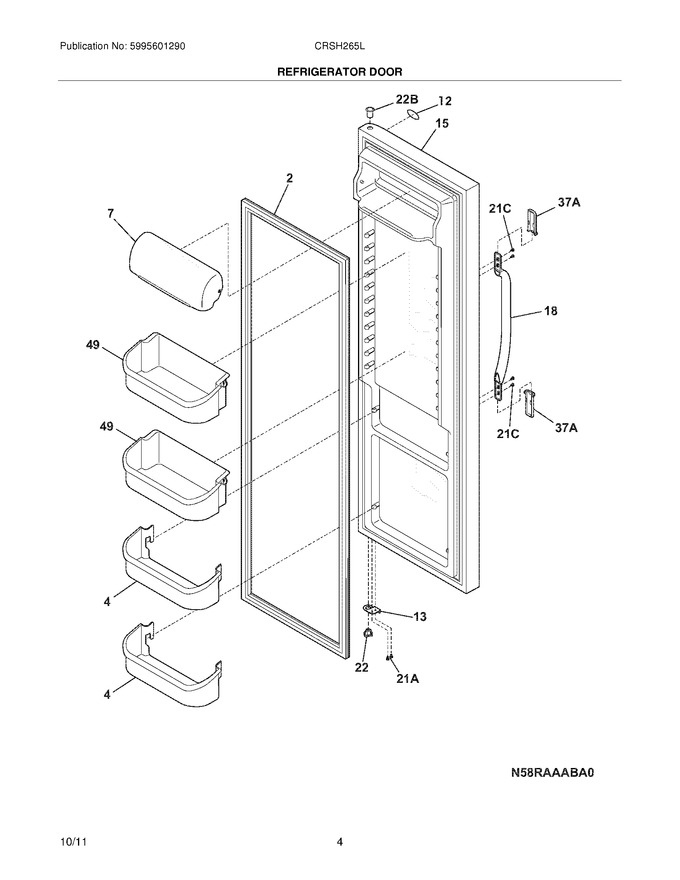

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240323001 | Bin-door,pseudo ,bottom |
|
Immediately | $ 42.81 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 12 | 242115801 | Nameplate |
|
- | |||||
| 13 | 240581901 | Door Stop,white ,refr |
|
$ 43.95 | |||||
| 15 | 242038870 | Door-refr,white ,complete Assy |
|
- | |||||
| 18 | 297311201 | Handle-door, White (Replaces: 218762701) |
|
Immediately | $ 80.60 | ||||
| 22 | 242015301 | Bearing-hinge(ref),natural ,closer |
|
$ 11.44 | |||||
| 49 | 240356415 | Bin-door,gallon |
|
- | |||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 21C | 218781101 | Screw,pan Head ,8-18 X 0.625 |
|
$ 15.60 | |||||
| 22B | 240328402 | Bearing-hinge,natural ,upper |
|
$ 19.85 | |||||
| 37A | 215870629 | Trim-handle,2.47`` ,white ,w/satin Al Band |
|
$ 55.99 | |||||
| F2 | 241786013 | Gasket-refr Door,white ,magnetic (Replaces: 241786001) |
|
$ 95.90 | |||||
| F37A | 218676004 | Band-decorative,satin Aluminum ,handle Trim |
|
$ 57.60 |
