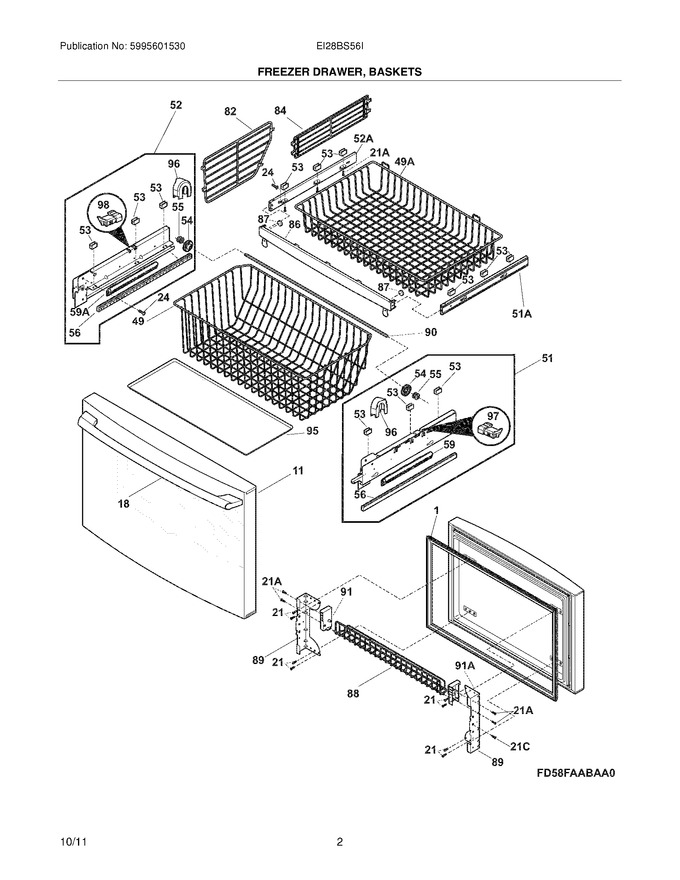

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241987901		Drawer,white ,freezer				$ 267.67
18	241881324		Handle-frzr Drawer,white		Appelez-nous	-
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
24	242039701		Screw				$ 13.46
49	242026801		Basket-frzr,lower				$ 252.95
51	241883604		Slide Assembly,basket Lower ,rh ,freezer Drawer			Immediately	$ 287.06
52	241883704		Slide Assembly,basket Lower ,lh ,freezer Drawer				$ 350.37
53	241824201		Retainer-basket				$ 63.89
54	241770201		Pinion				$ 34.73
55	241770301		Pinion-idler				$ 21.97
56	242158001		Rack-drawer Travel				$ 43.89
59	5304474655		Closure,drawer   (Replaces: 241979702)				$ 70.88
82	242026901		Divider,basket				$ 61.81
84	241780904		Divider,basket ,upper   (Replaces: 241780901)				$ 71.29
86	241953202		Bar,stabalizer ,freezer Drawer				$ 165.14
87	241812202		Magnet,freezer Drawer				$ 72.30
88	241824008		Rack-tilt Out,door .   (Replaces: 241824006)				$ 123.62
89	241972302		Bracket-freezer Drawer				$ 109.21
90	241770705		Bar,timing   (Replaces: 241770702)				$ 50.66
91	241824102		Cap-door Rack				$ 17.44
95	241770808		Tray,spill Guard				$ 98.33
96	241973501		Cover-pinion   (Replaces: 242156901)				$ 57.27
97	241926401		Actuator,rh ,white ,light				$ 17.54
98	241926402		Actuator,lh ,white ,light				$ 16.55
21A	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
21C	241899703		Screw,truss Head ,no.10-32 X 1/4 ,zinc				$ 15.92
49A	241780802		Basket-frzr,upper				$ 163.12
51A	241894223		Slide Assembly,basket ,rh ,freezer Drawer   (Replaces: 241894201)			Immediately	$ 132.53
52A	5304491063		Slide Assembly,basket ,lh ,freezer Drawer   (Replaces: 241894203)				$ 155.21
59A	241979701		Closure,drawer		Appelez-nous	-
91A	241824101		Cap,door Rack ,white				$ 17.44
F1	5304537408		Gasket-frzr Drawer,white ,magnetic   (Replaces: 241778302)			Immediately	$ 86.28
F21C	5304497384		Plate, Tapping   (Replaces: 241892902)				$ 15.60
NI	241999901		Guide,divider ,plastic (abs) ,lower				$ 25.10
NI	242011101		Pin-lock				$ 15.17
NI	241979601		Bumper,rubber				$ 22.68
NI	241999902		Guide,divider ,plastic (abs) ,lower ,lh				$ 21.27
NI	241701902		Screwdriver-3/32`` Balldriver				$ 19.85
NI	241601002		Wrench,allen		Appelez-nous	-
NI	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
NI	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
NI	242146401		Screw,hex Whd ,1/4-20 X 3/8`` ,connects Frz,rails To Door ,(4)   (Replaces: 241899602)			Immediately	$ 14.27
