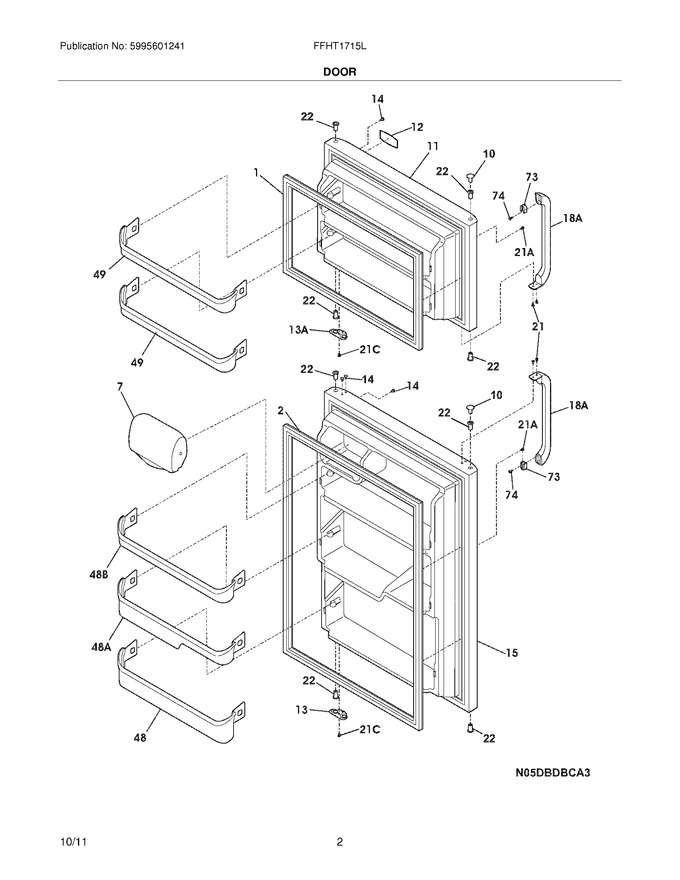

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
10 - Wiring Schematic
11 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 36.41 | ||||
| 10 | 240381303 | Plug-button,black ,hinge Brg Hole |
|
$ 69.77 | |||||
| 11 | 240420104 | Door-frzr,black ,complete Assy |
|
- | |||||
| 12 | 242062803 | Nameplate,black |
|
- | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 14 | 240494003 | Plug-button,black |
|
$ 18.20 | |||||
| 15 | 240420204 | Door-refr,black ,complete Assy |
|
$ 280.86 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 48 | 240535101 | Rack-door |
|
Immediately | $ 28.57 | ||||
| 49 | 240535001 | Rack-door |
|
Immediately | $ 48.20 | ||||
| 73 | 218396701 | Block-handle Mtg,dovetail |
|
- | |||||
| 74 | 215503203 | Screw,cr Pan Hd ,10-16 X 0.500 |
|
Immediately | $ 7.09 | ||||
| 13A | 240312415 | Door Stop,black ,frzr |
|
$ 21.27 | |||||
| 18A | 218428121 | Handle-door,gray ,w/block & Screw |
|
$ 57.41 | |||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 48A | 240383801 | Bin-door,gallon |
|
Immediately | $ 55.90 | ||||
| 48B | 240383901 | Bin-door,2-liter |
|
Immediately | $ 56.87 | ||||
| F1 | 241872507 | Gasket-frzr Door,black ,magnetic |
|
$ 165.85 | |||||
| F2 | 241872510 | Gasket-refr Door,black ,magnetic |
|
$ 198.03 |
