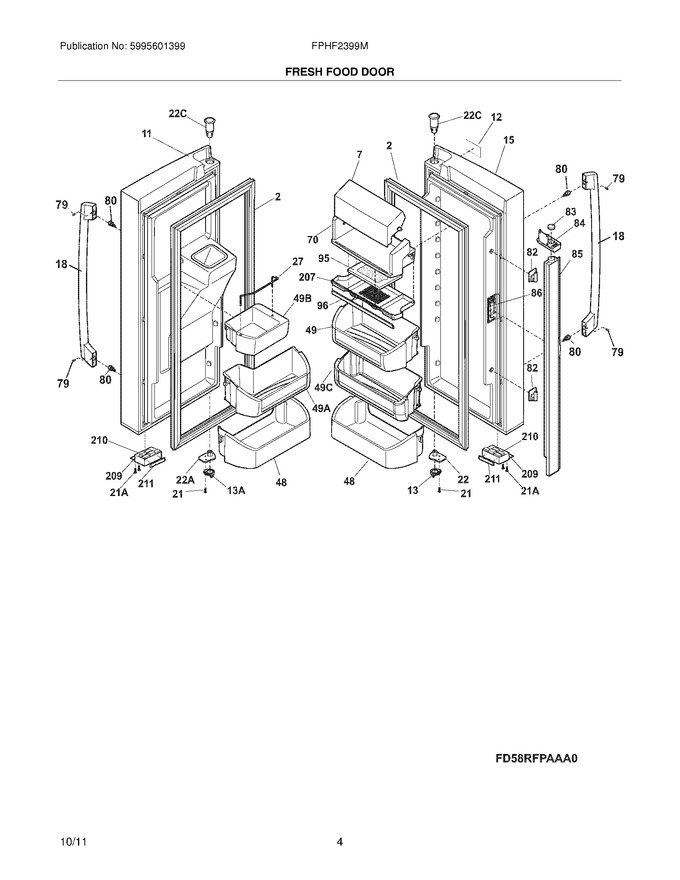

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 242011401 | Door-dairy,removable |
|
- | |||||
| 11 | 241988078 | Door-refr,stainless ,lh |
|
$ 480.25 | |||||
| 12 | 242015101 | Nameplate |
|
$ 4.55 | |||||
| 13 | 241868401 | Door Stop,refrig Rh ,plated |
|
$ 18.43 | |||||
| 15 | 241988076 | Door-refr,stainless ,rh |
|
$ 781.38 | |||||
| 18 | 241972501 | Handle-door,stainless |
|
$ 227.22 | |||||
| 21 | 242017501 | Screw,10-32 X 0.750 |
|
$ 15.60 | |||||
| 22 | 242075601 | Cam,upper Hinge ,rh |
|
$ 23.31 | |||||
| 27 | 241752702 | Retainer,tall Bottle |
|
$ 39.44 | |||||
| 48 | 242071401 | Bin-door,pseudo ,white |
|
Immediately | $ 91.99 | ||||
| 49 | 242037205 | Bin-door,gallon |
|
Immediately | $ 99.81 | ||||
| 70 | 241804604 | Compartment-dairy,removable |
|
- | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 241779401 | Hinge-mullion,upper/lower ,flipper |
|
Immediately | $ 21.99 | ||||
| 83 | 241812201 | Magnet,door |
|
$ 65.92 | |||||
| 84 | 5303918644 | Guide-mullion,magnet Cover ,flipper (Replaces: 241779702) |
|
$ 41.44 | |||||
| 85 | 241778811 | Flipper Mullion Assembly,w/heater |
|
$ 267.20 | |||||
| 86 | 241779802 | Hinge-mullion,center ,flipper (Replaces: 241779801) |
|
Immediately | $ 36.73 | ||||
| 95 | EAFCBF | Filter-air (Replaces: 242047801) |
|
Immediately | $ 27.64 | ||||
| 96 | 242048006 | Door-air Filter (Replaces: 242048002) |
|
$ 16.69 | |||||
| 207 | 242047901 | Housing-air Filter |
|
$ 80.39 | |||||
| 209 | 242291001 | Housing-magnet,white (Replaces: 242021001) |
|
$ 20.48 | |||||
| 210 | 241779101 | Magnet,door (Replaces: 241779103) |
|
Immediately | $ 31.19 | ||||
| 211 | 241979601 | Bumper,rubber |
|
$ 22.68 | |||||
| 13A | 241868402 | Door Stop,refr Lh ,plated |
|
$ 18.43 | |||||
| 21A | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 22A | 242075602 | Cam,upper Hinge ,lh |
|
$ 25.02 | |||||
| 22C | 241760401 | Bearing,hinge ,top |
|
Immediately | $ 19.13 | ||||
| 49A | 242037202 | Bin-door,2-liter |
|
Immediately | $ 105.44 | ||||
| 49B | 242080201 | Bin-door,dispenser |
|
$ 53.76 | |||||
| 49C | 242079801 | Bin-door,1/2 Gallon |
|
Immediately | $ 86.83 | ||||
| F2 | 241778315 | Gasket-refr Door,gray ,magnetic (Replaces: 241778307) |
|
Immediately | $ 89.88 | ||||
| F49A | 242012001 | Liner-door Bin,2-l |
|
$ 66.74 | |||||
| F49C | 242080102 | Liner-door Bin,49cx ,half Gallon (Replaces: 242080101) |
|
$ 68.04 | |||||
| FNI | 242040802 | Harness-wiring,door |
|
$ 103.74 | |||||
| NI | 5304520993 | Harness-wiring,flipper Mullion (Replaces: 241788401) |
|
Immediately | $ 41.97 | ||||
| NI | 5304517889 | Liner-door Bin,gallon (Replaces: 242012201) |
|
$ 65.22 | |||||
| NI | 241701902 | Screwdriver-3/32`` Balldriver |
|
$ 19.85 | |||||
| NI | 241601001 | Wrench,allen |
|
- | |||||
| NI | 241891401 | Cover-light,led |
|
$ 13.19 | |||||
| NI | 242015001 | Screw,no.10 8-19 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NI | 242068601 | Bumper,rh Door |
|
$ 14.41 | |||||
| NI | 241806601 | Connector-water,straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 240451503 | Screw (Replaces: 242064001) |
|
$ 3.79 | |||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 |
