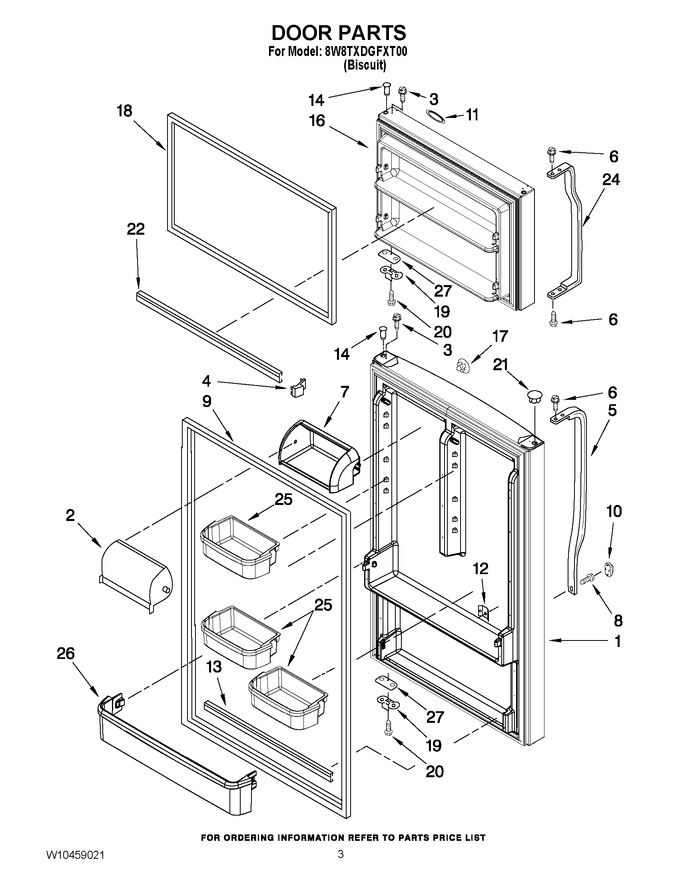

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329720		Refrigerator Door (includes Illus. 9,12, 14 & 24) (biscuit)		Appelez-nous	-
2	2264478		Cover, Utility				$ 32.58
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
4	WP2156003		Trim, Endcap   (Replaces: 2156003)			Immediately	$ 11.36
5	WP2221946T		Handle, Refrigerator (biscuit)   (Replaces: 2221946T)				$ 130.51
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.47
7	2264477		Utility Compartment				$ 83.18
8	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
9	WP2319264T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190032)			Immediately	$ 173.44
10	2202819T		Screw Cover (biscuit)				$ 8.02
11	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 79.87
12	WP939101		Screw, Anchor   (Replaces: 939101)				$ 6.75
13	WPW10234241		Trim, Door Shelf   (Replaces: W10234241)			Immediately	$ 104.87
14	WP2183003		Thimble   (Replaces: 2262054)				$ 6.98
16	W10329721		Freezer Door Biscuit (includes Illus. 14,18 & 24)		Appelez-nous	-
17	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 6.83
18	WP2319263T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190031)			Immediately	$ 152.58
19	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
21	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 6.85
22	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 83.25
24	WP2215015		Handle, Freezer (biscuit)   (Replaces: 2215015)				$ 131.34
25	W11396038		Bin   (Replaces: 2265126)				$ 138.81
26	WPW10468559		Trivet   (Replaces: 2328217)				$ 93.74
27	WP2258681W		Shim, Door Stop   (Replaces: 2258681W)			Immediately	$ 6.47
