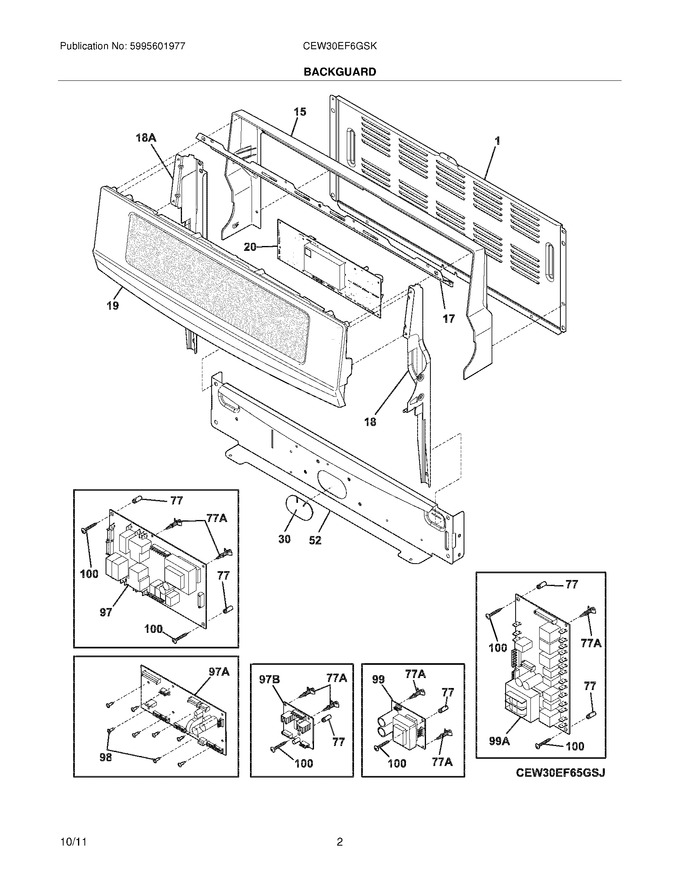

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316500100		Shield,rear Wall		Appelez-nous	-
15	316500402		Wrapper,backguard ,stainless				$ 326.94
17	316500301		Shield,upper ,backguard		Appelez-nous	-
18	316526000		Channel,support ,rh ,backguard		Appelez-nous	-
30	316287000		Plug,oval ,harness				$ 19.22
52	316509805		Shield,backguard ,black ,inner		Appelez-nous	-
77	316247900		Spacer,power Board				$ 44.65
98	316533900		Screw,truss Hd ,8-16 X 1.5 ,(10)				$ 12.02
100	5303289910		Screw,8a ,1``				$ 5.67
18A	316526001		Channel,support ,lh ,backguard		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
F19	316538416		Control Panel Assembly,user Interface ,w/ss Trim				$ 1,919.00
F20	316576641		Clock/timer,electronic ,es630a				$ 399.35
F97	316443920		Board,relay ,oven Control			Immediately	$ 403.75
F97A	316576410		Board,power ,uib			Immediately	$ 271.77
F97B	316519200		Board,variable Speed			Immediately	$ 256.24
F99	316535200		Board,power Supply ,8v ,(2)				$ 408.36
F99A	316442120		Board,power ,relay   (Replaces: 316442115)			Immediately	$ 309.84
FNI	316525610		Harness,wiring ,relay Board To ,user Interface				$ 221.41
FNI	316525601		Harness,wiring ,control To ,relay Board				$ 140.02
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
