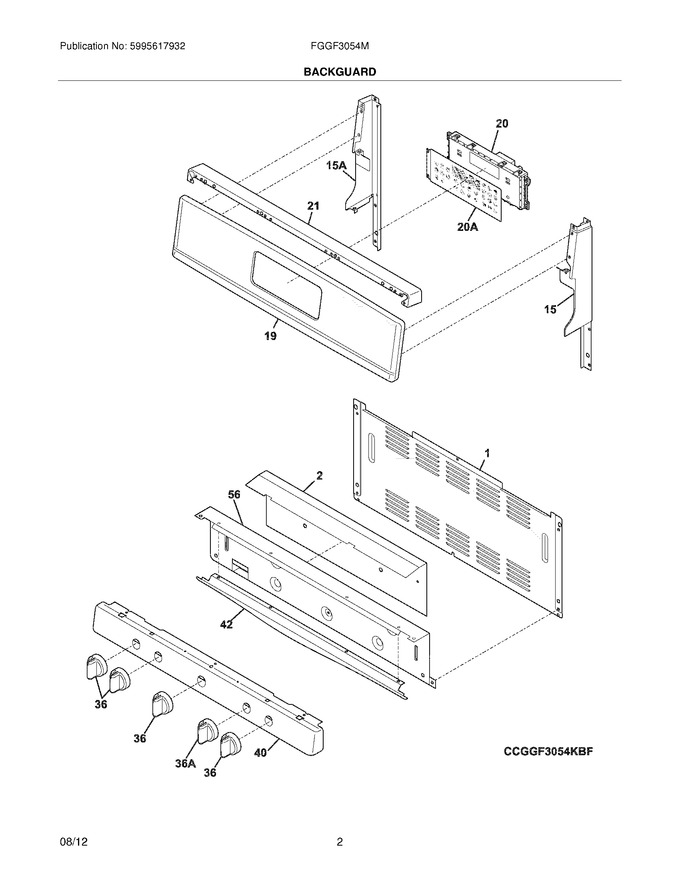

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield,rear Wall				$ 70.04
2	316497601		Shield,backguard ,inner				$ 49.40
15	316546702		Cap,backguard ,black ,rh End				$ 52.55
19	316572405		Panel,backguard ,black				$ 169.26
21	316546605		Cap,backguard ,black ,top   (Replaces: 316546601)				$ 66.91
36	316564510		Knob,top Valve ,black ,(4)				$ 47.99
40	316561964		Panel,manifold ,black		Appelez-nous	-
42	316416204		Trim,extrusion ,black   (Replaces: 316416200)				$ 43.99
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316546703		Cap,backguard ,black ,lh End				$ 64.47
36A	316564507		Knob,top Valve ,black ,(5)				$ 145.95
F20	316560118		Controller,electronic ,es540			Immediately	$ 426.47
F20A	316419828		Overlay,clock ,black ,es540			Immediately	$ 18.83
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
