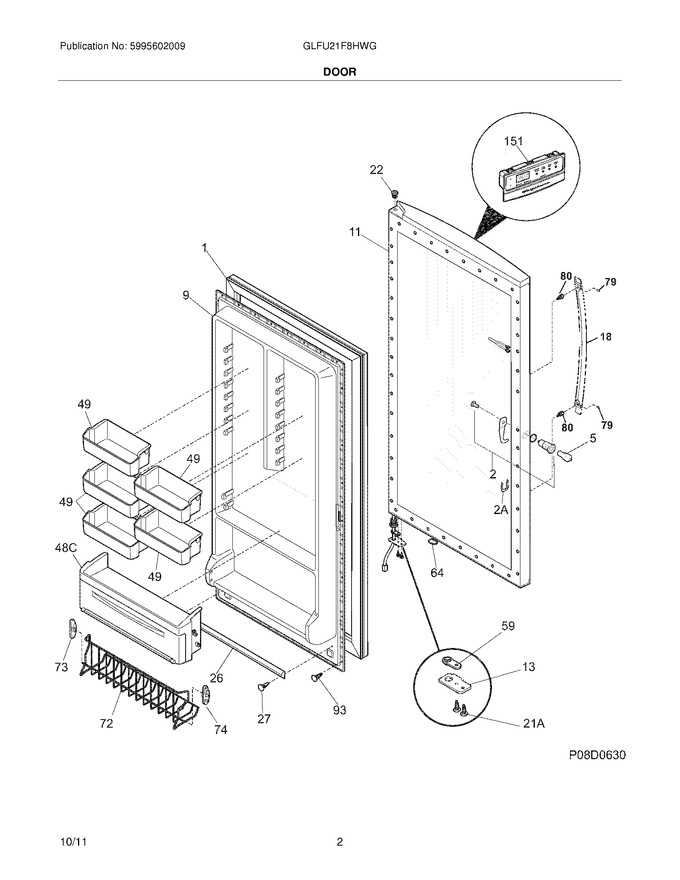

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507199		Gasket-door,white   (Replaces: 216522362)			Immediately	$ 159.60
2	297318600		Lock Assy				$ 36.87
5	297147700		Key,lock			Immediately	$ 7.57
9	297185900		Panel-inner Door,frzr				$ 193.49
11	297353301		Panel-outer Door,white		Appelez-nous	-
13	297154800		Door Stop,rh				$ 12.23
18	297437820		Handle-door,white   (Replaces: 297290920)				$ 111.99
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary				$ 49.62
27	5304472186		Clip,panel Mtg				$ 11.57
49	A00299203		Bin-door,2-liter   (Replaces: 297187200)				$ 80.33
59	216974500		Bearing,door Closer				$ 15.54
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	297186701		Shelf,tilt Out ,wire				$ 74.39
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
21A	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,door Stop/hng   (Replaces: 216850900)				$ 13.46
2A	297213300		Clip,spring				$ 10.17
48C	297350101		Bin-door,w/lid   (Replaces: 297350100)			Immediately	$ 139.23
F151	297235200		Control-electronic,assy ,white ,115v   (Replaces: 297366306)			Immediately	$ 338.99
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	240537301		Nut-anchor,door Hdl Screw				$ 11.34
