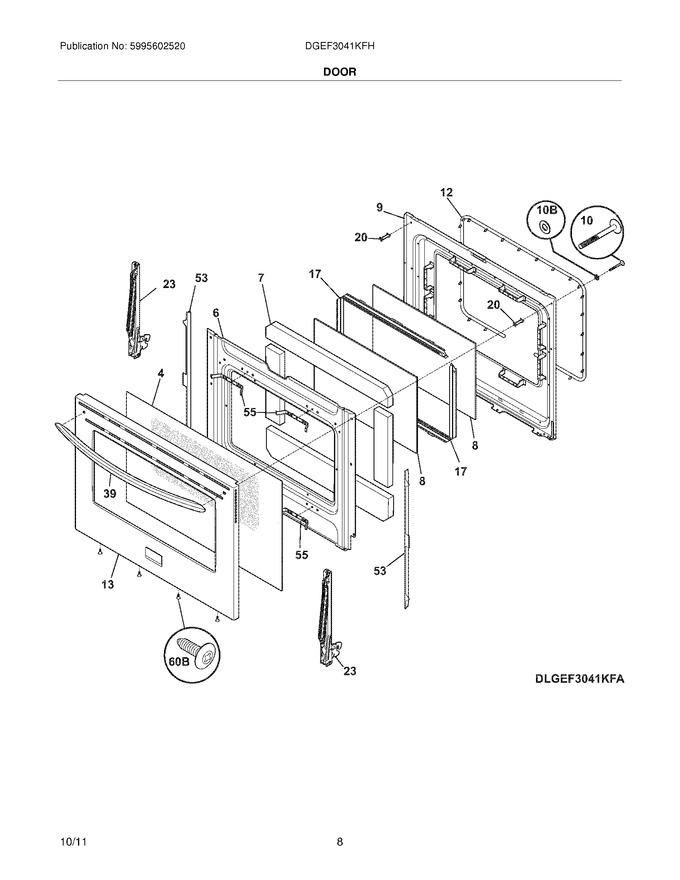

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452758		Glass,oven Door ,black ,w/foil   (Replaces: 316452719)			Immediately	$ 213.87
6	316406328		Shield-wool   (Replaces: 316406312)				$ 87.21
7	316405600		Insulation,oven Door				$ 76.55
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117502)				$ 116.95
9	316423701		Liner,oven Door				$ 143.50
10	316433303		Screw,handle Mtg. ,10-24 X 1.75`` ,(2)   (Replaces: 316439500)			Immediately	$ 31.17
12	316405000		Seal,oven Door			Immediately	$ 179.17
13	316407918		Panel,oven Door ,stainless ,outer		Appelez-nous	-
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316559901)			Immediately	$ 25.02
20	316284100		Spacer,door Handle ,(2)				$ 14.89
23	316456309		Hinge,oven Door ,black ,(2)				$ 71.87
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
53	5304532042		Shield,door Filler ,black ,(2)   (Replaces: 316408201)				$ 25.79
55	316408300		Bracket,glass Support ,(4)				$ 21.23
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
