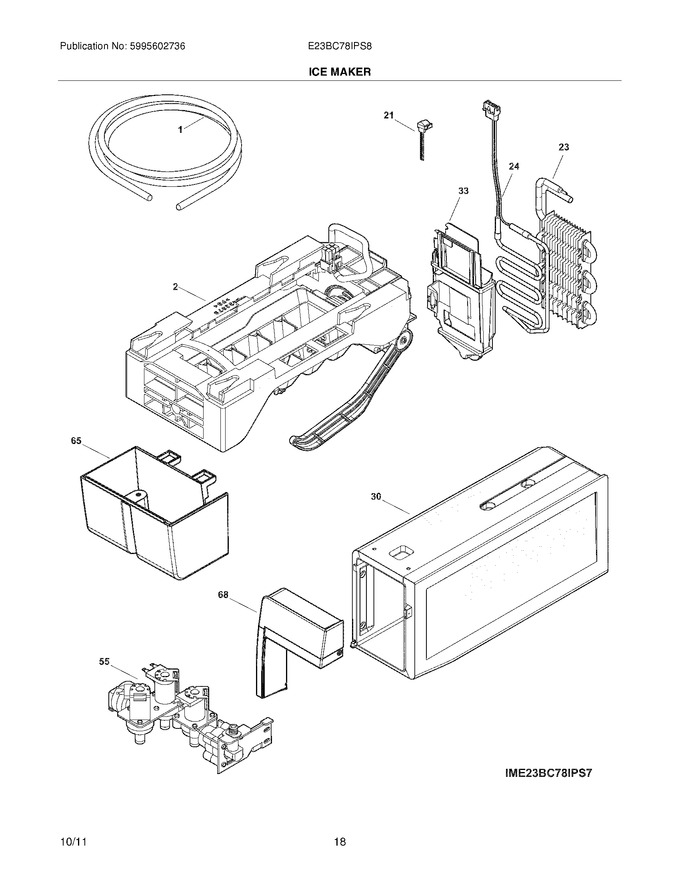

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976426		Tube-water Inlet,59.00`` ,yellow				$ 13.42
2	243297613		Ice Maker,complete ,115 V   (Replaces: 243297603)			Immediately	$ 117.66
23	5303918567		Evaporator Kit			Immediately	$ 309.58
30	242093501		Cover,icmkr & Bucket   (Replaces: 242142202)				$ 168.69
33	242094401		Housing-evaporator				$ 6.39
65	242145902		Cover-wiring		Appelez-nous	-
68	242095002		Cover,-front ,bucket Trim				$ 94.82
F21	5303918568		Thermostat-defrost,defrost ,icemaker Evap				$ 91.43
F24	242094802		Heater-defrost   (Replaces: 242094801)			Immediately	$ 113.92
F55	242252702		Valve-water,triple Solenoid   (Replaces: 241734301)			Immediately	$ 132.71
FNI	5303918446		Heat Exchanger,icemaker				$ 401.86
NI	5303918784		Gasket   (Replaces: 242146001)			Immediately	$ 122.75
NI	242095402		Gasket-evap Housing,.250x.250x3.300		Appelez-nous	-
NI	242095403		Gasket-evap Housing,.250x.250x7.750		Appelez-nous	-
NI	5303918784		Gasket-evap Housing,.250x.250x5.250   (Replaces: 242095404)			Immediately	$ 122.75
NI	242095405		Gasket-evap Housing,.250x.250x6.600		Appelez-nous	-
NI	242095408		Gasket-evap Housing		Appelez-nous	-
NI	218709101		Screw,hex Head ,10-32 X 0.500				$ 6.38
NI	240363602		Screw-shoulder				$ 13.65
NI	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
NI	241806601		Connector-water,straight   (Replaces: 242103001)			Immediately	$ 70.56
NI	5303918571		Tube-water,ice Mold Fill ,black ,extension   (Replaces: 241844403)				$ 164.24
NI	5303918484		Chute-ice   (Replaces: 242105401)				$ 30.47
NI	5303918571		Kit-water Fill Chute				$ 164.24
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	241641502		Screw				$ 8.51
NI	218976425		Tube-water Inlet,51.00`` ,brown/tan				$ 101.35
NI	241920106		Tube-water Inlet, Green   (Replaces: 241920103)			Immediately	$ 60.67
NI	241964703		Tube-water		Appelez-nous	-
NI	241964704		Tube-water				$ 17.48
NI	241965907		Tube-water,formed ,64.86``   (Replaces: 241965903)				$ 21.23
NI	241695906		Screw,10-16ab X 0.50				$ 19.13
NI	242095406		Gasket			Immediately	$ 18.17
NI	5303918784		Gasket   (Replaces: 242095407)			Immediately	$ 122.75
NI	5303918784		Gasket   (Replaces: 242124801)			Immediately	$ 122.75
NI	5303918784		Gasket   (Replaces: 242124802)			Immediately	$ 122.75
