SELECT A DIAGRAM

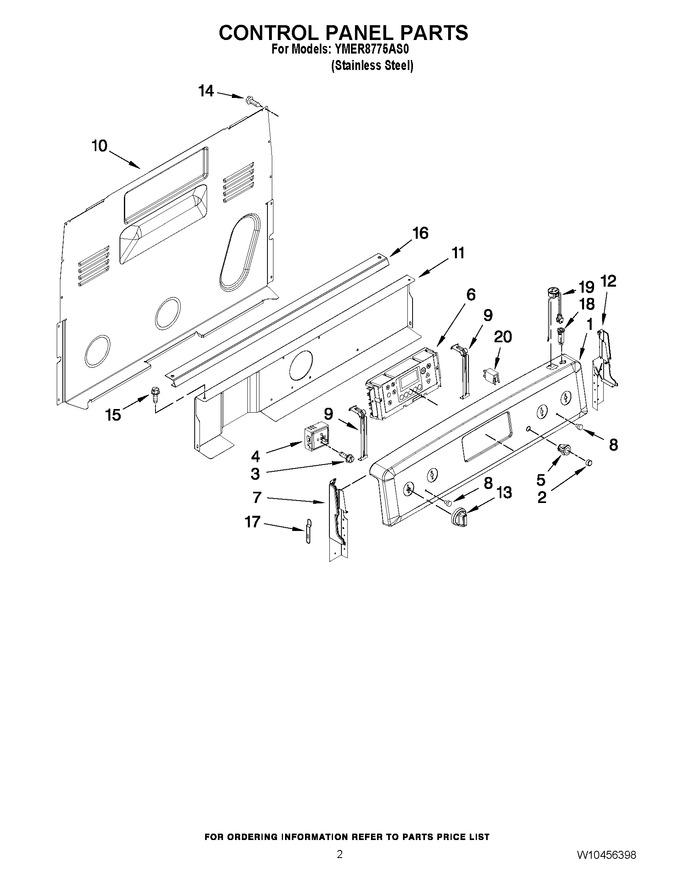

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10339453		Panel, Backguard (stainless)				$ 248.71
2	W10918209		Button, Keep Warm (stainless)   (Replaces: W10315961)				$ 17.33
3	WP3400882		Screw, Switch   (Replaces: 3400882)			Immediately	$ 6.47
4	WPW10411934		Switch, Infinte (rf)   (Replaces: W10411934)			Immediately	$ 98.45
4	5500-287		Switch, Infinte (lr & Lr)   (Replaces: 3148951)			Immediately	$ 47.15
4	WPW10391743		Switch, Infinte (lf)   (Replaces: W10391743)			Immediately	$ 111.18
5	W10315960		Bezel, Keep Warm (stainless)				$ 63.42
6	WPW10586726		Control (stainless)   (Replaces: W10348719)				$ 463.85
7	W11219664		End Cap, Left (black)   (Replaces: W10184437)				$ 131.85
8	WP3196068		Lens, Red   (Replaces: 3196068)			Immediately	$ 5.63
9	W11230932		Bracket, Control   (Replaces: W10324410)			Immediately	$ 72.69
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 187.75
11	W10134247		Shield, Heat			Immediately	$ 307.56
12	W11219665		End Cap, Right (black)   (Replaces: W10184438)				$ 36.40
13	WPW10370186		Knob (stainless)   (Replaces: W10370186)			Immediately	$ 19.24
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
15	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 12.62
16	W10525121		Bracket Console Mounting   (Replaces: W10182322)				$ 84.73
17	3196200		Clip, Spring				$ 8.96
18	WP9757602		Breaker, Circuit   (Replaces: 9757602)			Immediately	$ 48.43
19	W10861164		Receptacle   (Replaces: W10203475)			Immediately	$ 16.62
20	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 77.68

    View Diagram in Separate Window       Print Part List
