SELECT A DIAGRAM

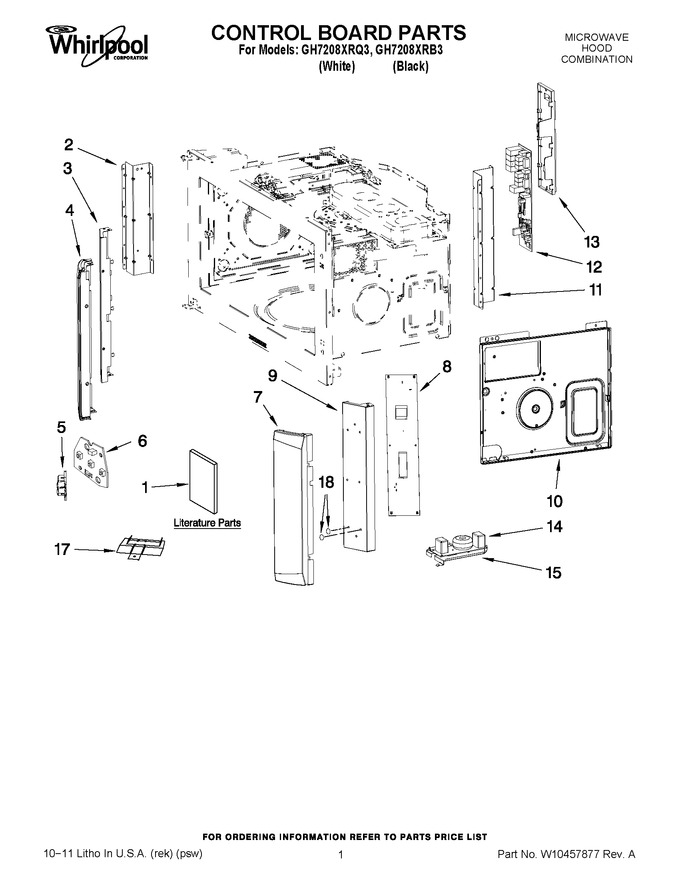

01 - Control Board Parts


02 - Door Parts


03 - Ventilation Parts


04 - Interior And Air Flow Parts


05 - Rack And Turntable Parts


06 - Cabinet And Installation Parts


07 - Convection Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8205293		Tech Sheet		Appelez-nous	-
1	8205272		Installation Instructions		Appelez-nous	-
1	8206637		Quick Reference		Appelez-nous	-
1	W10170439		Use & Care Guide		Appelez-nous	-
2	8206039		Support, Cavity (left)		Appelez-nous	-
3	8206040		Plate, Protection (left)		Appelez-nous	-
4	8206042		Side Panel, Left (black)		Appelez-nous	-
4	8206041		Side Panel, Left (white)		Appelez-nous	-
5	8206046		Button (black)		Appelez-nous	-
5	8206045		Button (white)		Appelez-nous	-
6	8206049		Hood/light Switch Board		Appelez-nous	-
7	8206056		Side Panel, Right (white)		Appelez-nous	-
7	W10115571		Side Panel, Right (black)		Appelez-nous	-
8	8206602		Control Board, (relay)				$ 146.45
9	8206061		Plate, Protection (right)				$ 68.19
10	W10113785		Plate, Chassis				$ 76.77
11	8206065		Support, Cavity (right)				$ 60.94
12	8206603		Board, Relay				$ 147.50
13	W10282647		Holder, Microcomputer		Appelez-nous	-
14	8206062		Ac Line Filter		Appelez-nous	-
15	8206060		Holder, Filter				$ 62.51
17	W10113783		Resistor (25w)				$ 90.03
18	W10113784		Spacer (6)				$ 6.76
