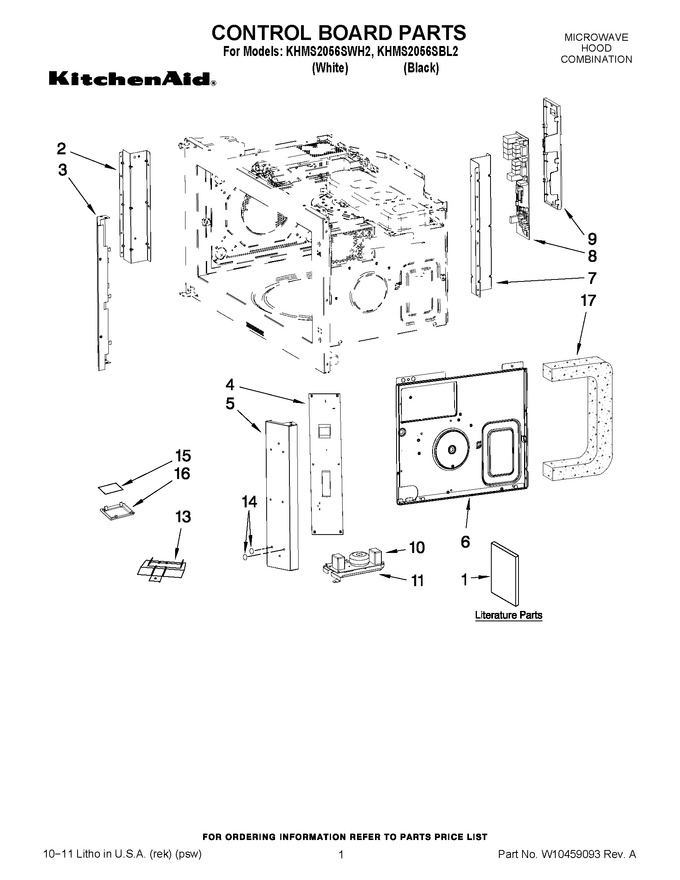

01 - Control Board Parts
02 - Door Parts
03 - Ventilation Parts
04 - Interior And Air Flow Parts
05 - Rack And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10132017 | Tech Sheet |
|
- | |||||
| 1 | W10121320 | Quick Reference |
|
- | |||||
| 1 | W10170438 | Use & Care Guide |
|
- | |||||
| 2 | 8206039 | Support, Cavity (left) |
|
- | |||||
| 3 | 8206040 | Plate, Protection (left) |
|
- | |||||
| 4 | 8206488 | Control Board, (relay) |
|
$ 138.14 | |||||
| 5 | 8206061 | Plate, Protection (right) |
|
$ 68.19 | |||||
| 6 | W10113785 | Plate, Chassis |
|
$ 76.77 | |||||
| 7 | 8206065 | Support, Cavity (right) |
|
$ 60.94 | |||||
| 8 | WP8206493 | Board, Relay (Replaces: 8206493) |
|
$ 235.40 | |||||
| 9 | W10282647 | Holder, Microcomputer |
|
- | |||||
| 10 | 8206062 | Ac Line Filter |
|
- | |||||
| 11 | 8206060 | Holder, Filter |
|
$ 62.51 | |||||
| 13 | W10113783 | Resistor (25w) |
|
$ 90.03 | |||||
| 14 | W10113784 | Spacer (6) |
|
$ 6.76 | |||||
| 15 | W10189668 | Glass, Lamp |
|
$ 42.01 | |||||
| 16 | 8169646 | Frame, Glass |
|
$ 6.64 | |||||
| 17 | W10143955 | Seal, Foam |
|
- |
