SELECT A DIAGRAM

01 - Control Board Parts


02 - Door Parts


03 - Ventilation Parts


04 - Interior And Air Flow Parts


05 - Rack And Turntable Parts

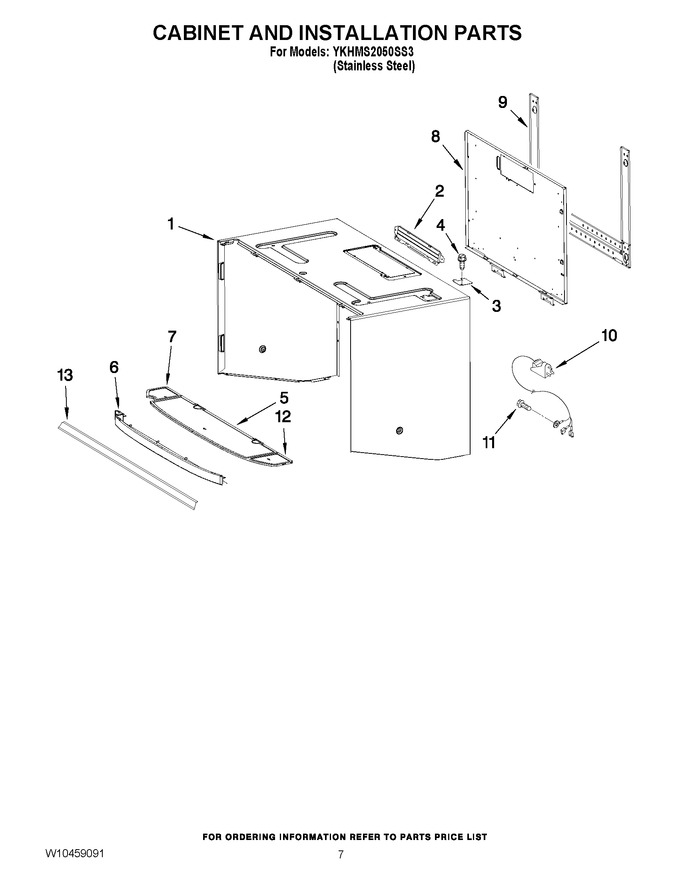

06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10283384		Case, Outer (stainless)				$ 147.93
2	W10843943		Damper   (Replaces: 8206442)			Immediately	$ 65.74
3	8184897		Lid, Power Cord		Appelez-nous	-
4	4393472		Screw		Appelez-nous	-
5	8206475		Vent Screen (middle)				$ 195.44
6	W10116263		Support, Vent Screen (stainless)				$ 37.74
7	8206207		Vent Screen (left)				$ 97.78
8	8206051		Plate, Back				$ 51.26
9	8206319		Plate, Mounting		Appelez-nous	-
10	8206182		Cord, Power				$ 33.67
11	4393836		Screw		Appelez-nous	-
12	8206206		Vent Screen (right)				$ 173.30
13	8205980		Deflector, Air				$ 85.38
NI	W10244770		Voltage, High		Appelez-nous	-
NI	8191157		Template, Upper				$ 8.81
NI	W10553076		Cktop Lamp&tt Wire   (Replaces: 8206487)		Appelez-nous	-
NI	W10113776		Harns-wire,no.70 Rcb		Appelez-nous	-
NI	W10253657		Main Harness		Appelez-nous	-
NI	8206185		Ground Wire		Appelez-nous	-
NI	W10112290		Harns-wire,no.71 Rcb		Appelez-nous	-
NI	W10113777		Harns-wire, Rcb - Inverter		Appelez-nous	-
NI	W10470173		Hood/light Control Harns-wire No.74   (Replaces: 8206189)				$ 16.76
NI	W10470175		Hood/light Control Harns-wire No.73   (Replaces: W10113778)				$ 14.30
NI	W10113779		Harns-wire No.75 P64 Rcb		Appelez-nous	-
NI	W10113780		Harns-wire No.76 P2 Rcb		Appelez-nous	-
NI	W10470191		Harns-wire No.77 P3 Lcd To Uib   (Replaces: 8206468)				$ 130.68

    View Diagram in Separate Window       Print Part List
