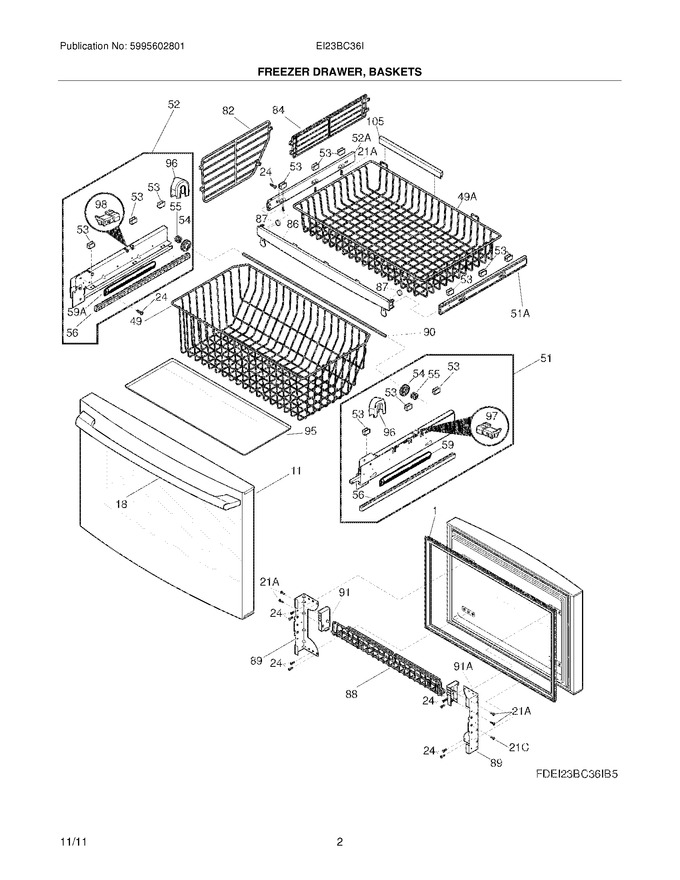

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 241987902 | Drawer,black ,freezer |
|
$ 261.77 | |||||
| 18 | 241881323 | Handle-frzr Drawer,black |
|
$ 206.20 | |||||
| 24 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 49 | 242027001 | Basket-frzr,lower |
|
$ 191.00 | |||||
| 51 | 241883605 | Slide Assembly,basket Lower ,rh ,freezer Drawer |
|
$ 252.89 | |||||
| 52 | 241883705 | Slide Assembly,basket Lower ,lh ,freezer Drawer |
|
$ 263.24 | |||||
| 53 | 241824201 | Retainer-basket |
|
$ 63.89 | |||||
| 54 | 241770201 | Pinion |
|
$ 34.73 | |||||
| 55 | 241770301 | Pinion-idler |
|
$ 21.97 | |||||
| 56 | 242163801 | Rack,drawer Travel ,lh |
|
$ 14.98 | |||||
| 56 | 242163802 | Rack,drawer Travel ,rh |
|
$ 13.99 | |||||
| 59 | 5304474655 | Closure,drawer (Replaces: 241979702) |
|
$ 70.88 | |||||
| 82 | 242027101 | Divider,basket |
|
$ 64.88 | |||||
| 84 | 241780902 | Divider,basket ,upper |
|
- | |||||
| 86 | 241953202 | Bar,stabalizer ,freezer Drawer |
|
$ 165.14 | |||||
| 87 | 241812202 | Magnet,freezer Drawer |
|
$ 72.30 | |||||
| 88 | 241824008 | Rack-tilt Out,door . (Replaces: 241824006) |
|
$ 123.62 | |||||
| 89 | 241972302 | Bracket-freezer Drawer |
|
$ 109.21 | |||||
| 90 | 241770705 | Bar,timing (Replaces: 241770702) |
|
$ 50.66 | |||||
| 91 | 241824102 | Cap-door Rack |
|
$ 17.44 | |||||
| 95 | 241770809 | Tray,spill Guard |
|
$ 84.02 | |||||
| 96 | 241973501 | Cover-pinion (Replaces: 242156901) |
|
$ 57.27 | |||||
| 97 | 241926401 | Actuator,rh ,white ,light |
|
$ 17.54 | |||||
| 98 | 241926402 | Actuator,lh ,white ,light |
|
$ 16.55 | |||||
| 105 | 242116801 | Trim-basket |
|
$ 17.72 | |||||
| 21A | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 21C | 241899703 | Screw,truss Head ,no.10-32 X 1/4 ,zinc |
|
$ 15.92 | |||||
| 49A | 241780806 | Basket-frzr,upper |
|
$ 167.90 | |||||
| 51A | 5304491062 | Slide Assembly,basket ,rh ,freezer Drawer (Replaces: 241894202) |
|
$ 201.29 | |||||
| 52A | 5304491062 | Slide Assembly,basket ,lh ,freezer Drawer (Replaces: 241894204) |
|
$ 201.29 | |||||
| 59A | 241979701 | Closure,drawer |
|
- | |||||
| 91A | 241824101 | Cap,door Rack ,white |
|
$ 17.44 | |||||
| F1 | 5304537408 | Gasket-frzr Drawer,black ,magnetic (Replaces: 241778304) |
|
Immediately | $ 86.28 | ||||
| F21C | 5304497384 | Plate, Tapping (Replaces: 241892902) |
|
$ 15.60 | |||||
| NI | 241979601 | Bumper,rubber |
|
$ 22.68 | |||||
| NI | 241701902 | Screwdriver-3/32`` Balldriver |
|
$ 19.85 | |||||
| NI | 241601002 | Wrench,allen |
|
- | |||||
| NI | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| NI | 242146401 | Screw,hex Whd ,1/4-20 X 3/8`` ,connects Frz,rails To Door ,(4) (Replaces: 241899601) |
|
Immediately | $ 14.27 | ||||
| NI | 242011101 | Pin-lock |
|
$ 15.17 | |||||
| NI | 242039701 | Screw |
|
$ 13.46 |
